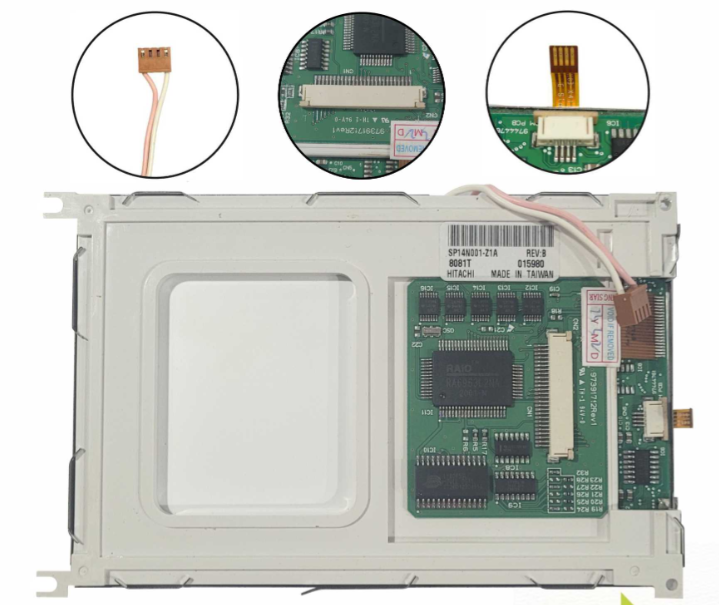

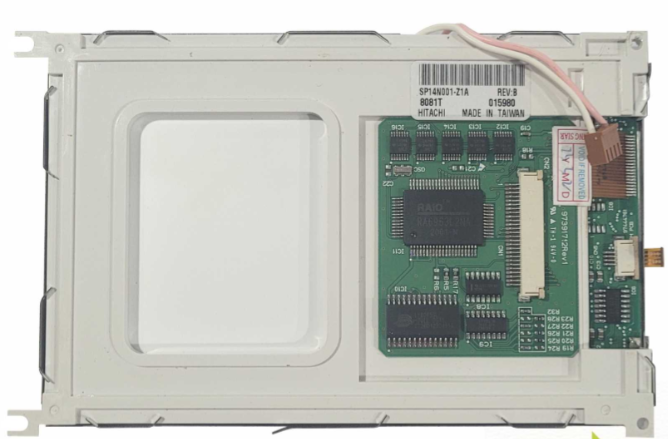

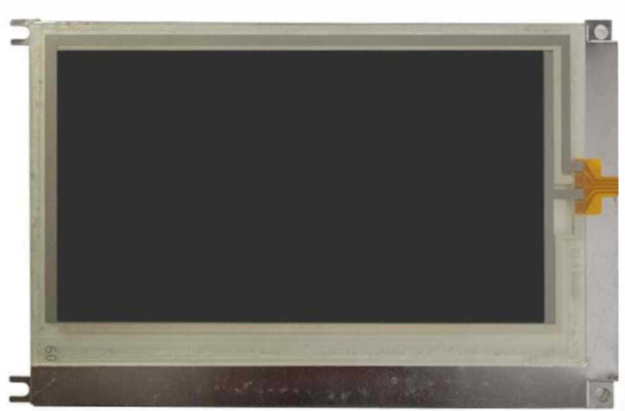

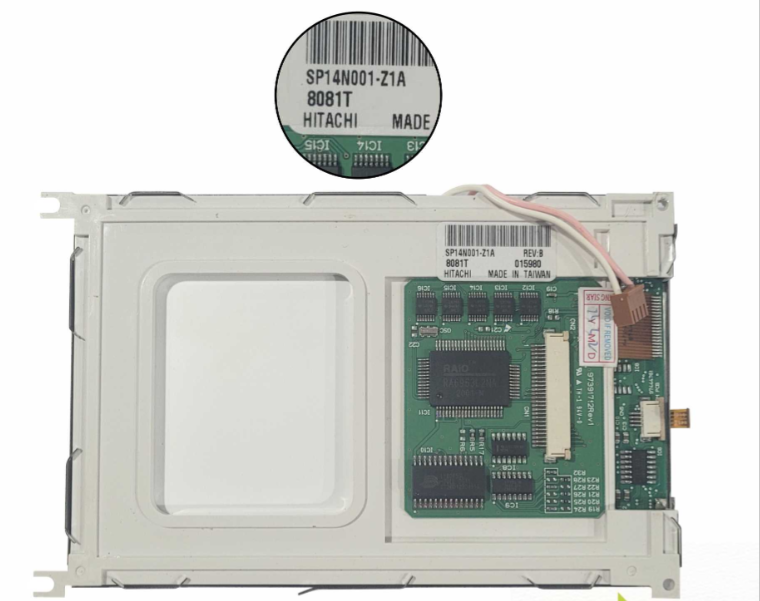

The Hitachi SP14N001‑Z1A is a 5.1-inch monochrome FSTN (Film Super Twisted Nematic) LCD module with a 240×128 pixel resolution, tailored for industrial, embedded, and legacy systems. With a CCFL backlight for enhanced visibility and support for an optional 4-wire resistive touchscreen, this display offers excellent readability and basic touch functionality in demanding environments.
Mechanical Specifications:
Outline Dimensions: ~160 mm (W) × 109 mm (H) × ~14 mm (D)
Active Area: ~122 mm (W) × 64 mm (H)
Weight: Approximately 200–220 grams
Mounting Options: Metal bezel with standard mounting holes
Interface Type: Parallel data interface (e.g., 8-bit or 4-bit bus)
Connector: Flat flexible cable (FFC) or header, depending on variant
Electrical & Environmental Specifications:
Logic Supply Voltage: Typically 5V DC
Backlight Power: Requires external CCFL inverter (300–600V AC)
Operating Temperature Range: –10 °C to +60 °C
Storage Temperature Range: –20 °C to +70 °C
Touch Panel Voltage: ~5V (resistive input interface)
RoHS Compliance: May vary; check specific lot or supplier
Applications:
Human-Machine Interfaces (HMI)
Legacy control systems and equipment upgrades
Industrial automation and diagnostics
Medical instrumentation
Embedded system displays with basic touch input
