CNC/PLC PartsCNC/PLC LCD Touch Panel AUO A104SN03-V.1 LCD DISPLAY

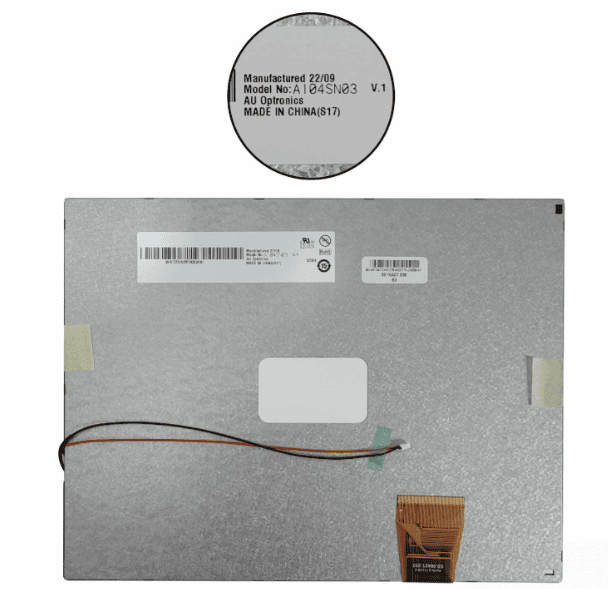

AUO A104SN03-V.1 LCD DISPLAY
AUO A104SN03-V.1 LCD DISPLAY
AUO A104SN03-V.1 LCD DISPLAY
AUO A104SN03-V.1 LCD DISPLAY
AUO A104SN03-V.1 LCD DISPLAY

AUO A104SN03-V.1 LCD DISPLAY

Specification:

  1. Display Size: 10.4 inches (26.42 cm) diagonal

  2. Resolution: 800 × 600 pixels (SVGA)

  3. Aspect Ratio: 4:3

  4. Pixel Pitch: ~0.264 × 0.264 mm

  5. Pixel Density: ~96 PPI

  6. Color Depth: 262K / 16.2M (6-bit + Hi-FRC)

  7. Display Mode: a-Si TFT, normally white, transmissive

  8. Brightness: ~400–500 cd/m² (typical)

  9. Contrast Ratio: ~700:1 (typical)

  10. Viewing Angles: ~160° horizontal / 140° vertical (typical)

  11. Response Time: ~25 ms (typical)

  12. Backlight Type: LED, edge-lit

  13. Backlight Lifetime: ~30,000–50,000 hours

Non-returnable
₹8,550.00 ₹14,500.00
