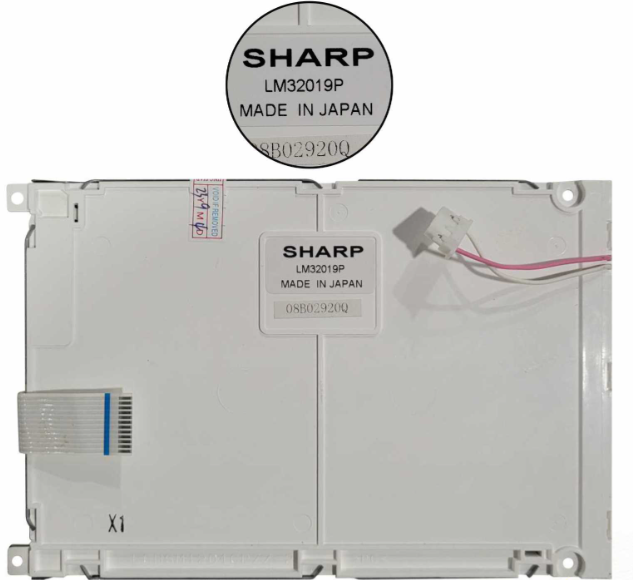

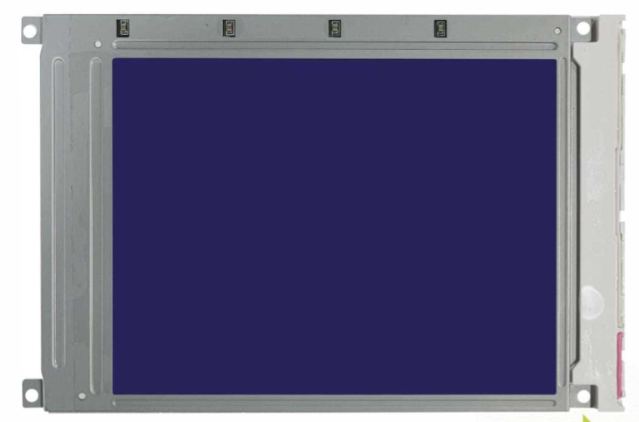

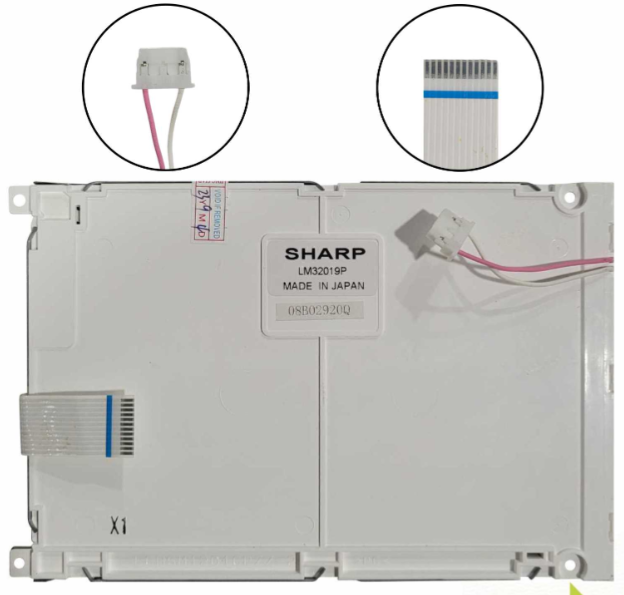

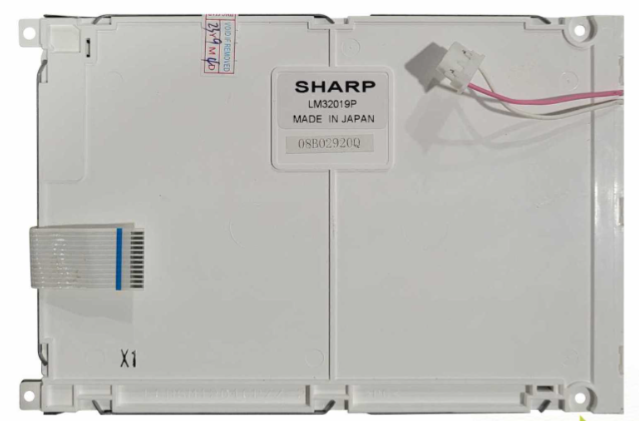

The Sharp LM32019P is a 3.2-inch monochrome LCD module designed for industrial equipment and specialized applications. It is known for its durability, sharp contrast, and reliability, making it ideal for use in harsh environments and equipment requiring clear and concise visual information.
It is a 5.7-inch diagonal FSTN-LCD display, with an integral CCFL backlight system, without backlight driver, without touch screen. Its resolution is 320×240, QVGA, with a 70 PPI pixel density and a contrast ratio of 10:1 (Typ.) (TM). It features an operating temperature range of 0 ~ 45°C, and a storage temperature range of -25 ~ 60°C.
The viewing angle is limited at 25/25/15/30 (typical), which makes it less suitable for situations where the screen is viewed from multiple angles. The response time is 350/170 ms (typical), which is relatively slower compared to some modern displays. Consequently, this can impact the smoothness of fast-moving content, as delays may be more noticeable during quick transitions. However, for standard applications where rapid motion is not a concern, the display performance remains acceptable.
Nevertheless, users should consider faster response times if they require smoother motion handling, such as for gaming or high-speed video playback.
