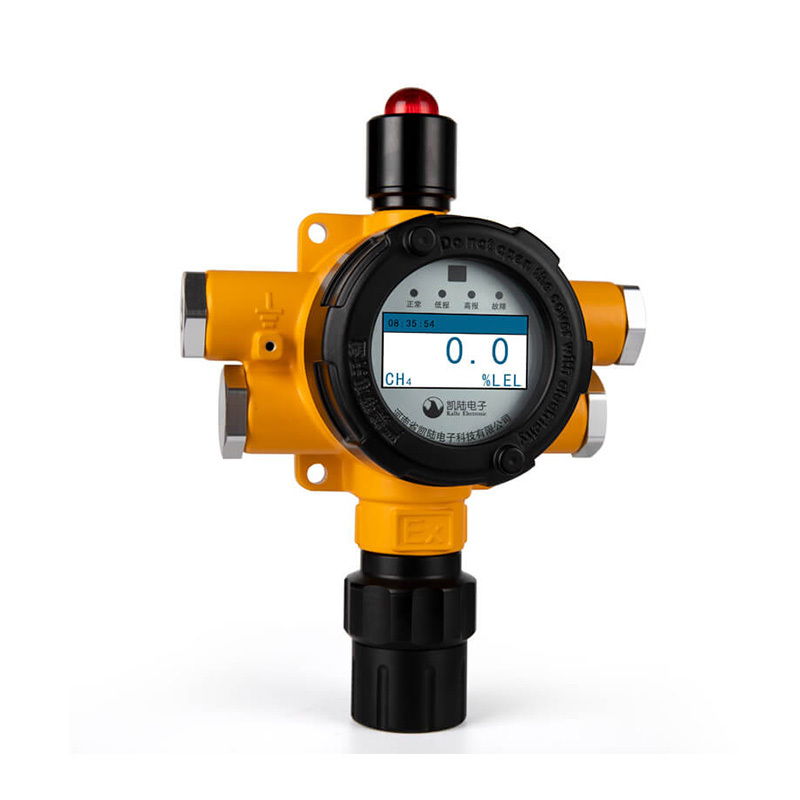

Specification:
Protection & Explosion Proof: IP66 rated, explosion-proof grade Ex db IIC T6 Gb / Ex tb IIIC T80°C Db.
Detection & Accuracy: Catalytic combustion principle, 0.1%LEL resolution, zero drift ≤±2% F.S., display error ±3%LEL.
Response & Pressure: Fast response ≤30s, operates under 36–106 kPa working pressure.
Operating Environment: Temperature -40℃~70℃, humidity <93%RH (non-condensing).
Design & Connectivity: Dimensions 26×19×13.5cm, weight 2.1kg, M27×1.5mm connection port, supports 3×1.5mm² or 4×1.5mm² shielded cables; sensor life 2 years.
Non-returnable
₹55,000.00
