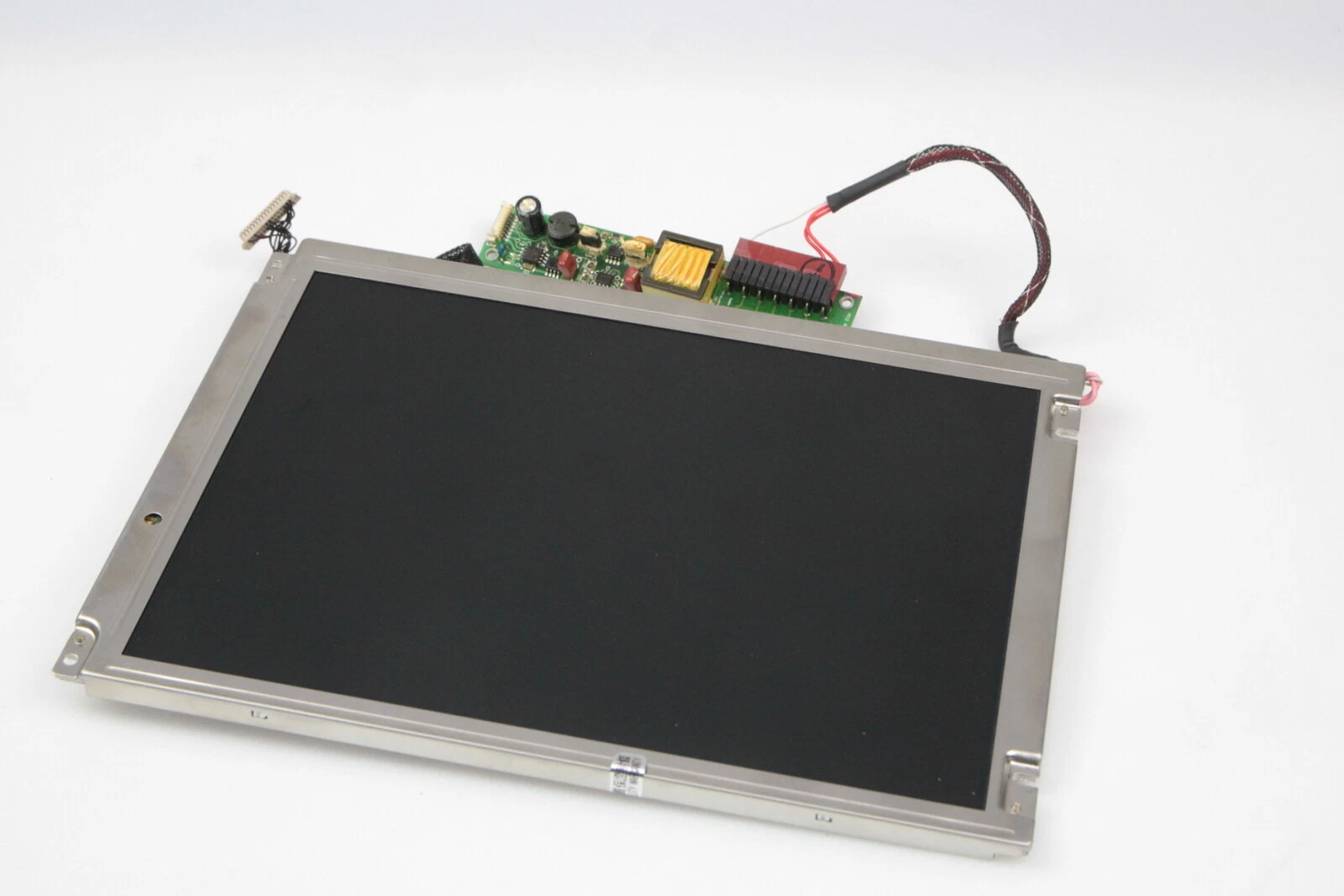

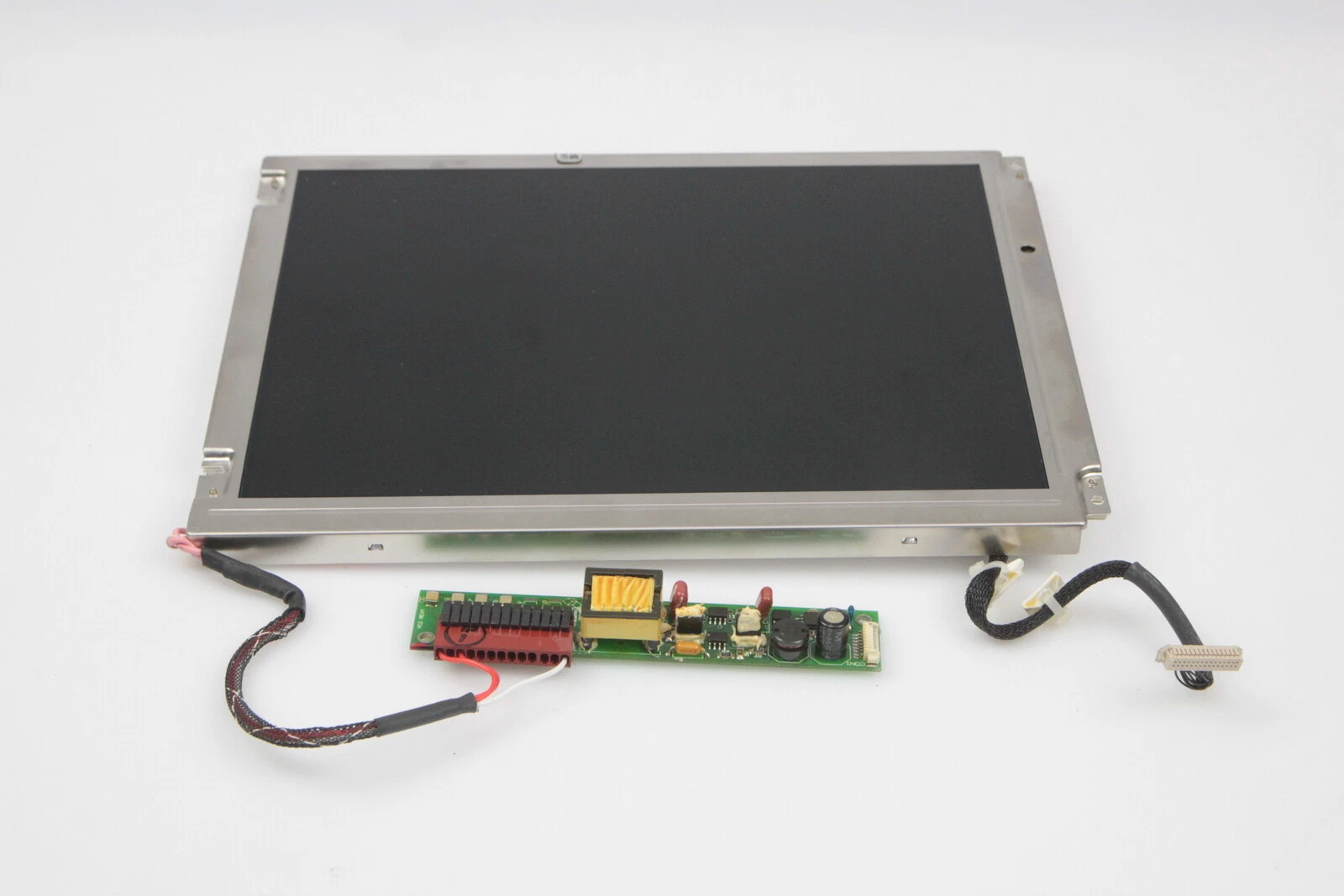

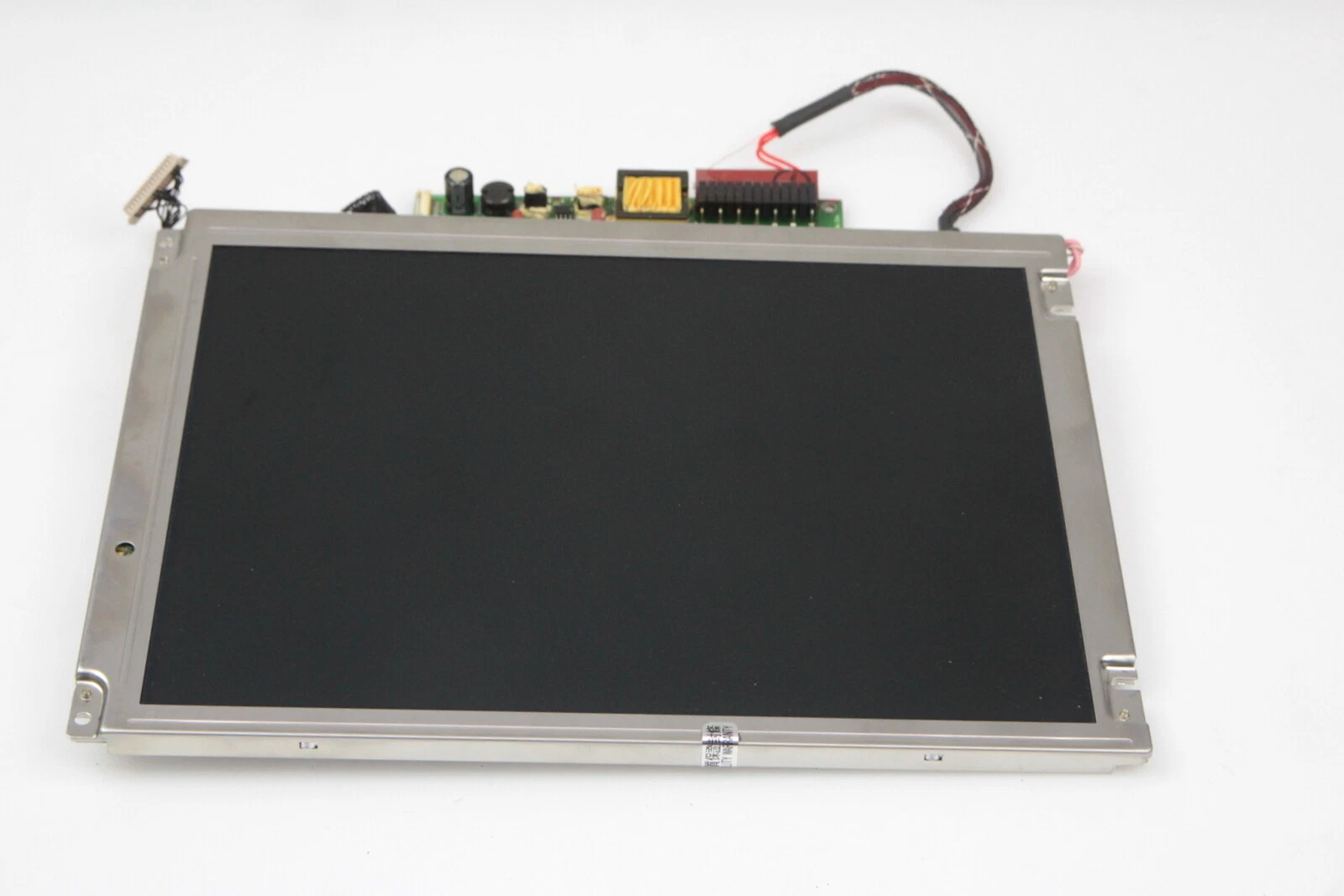

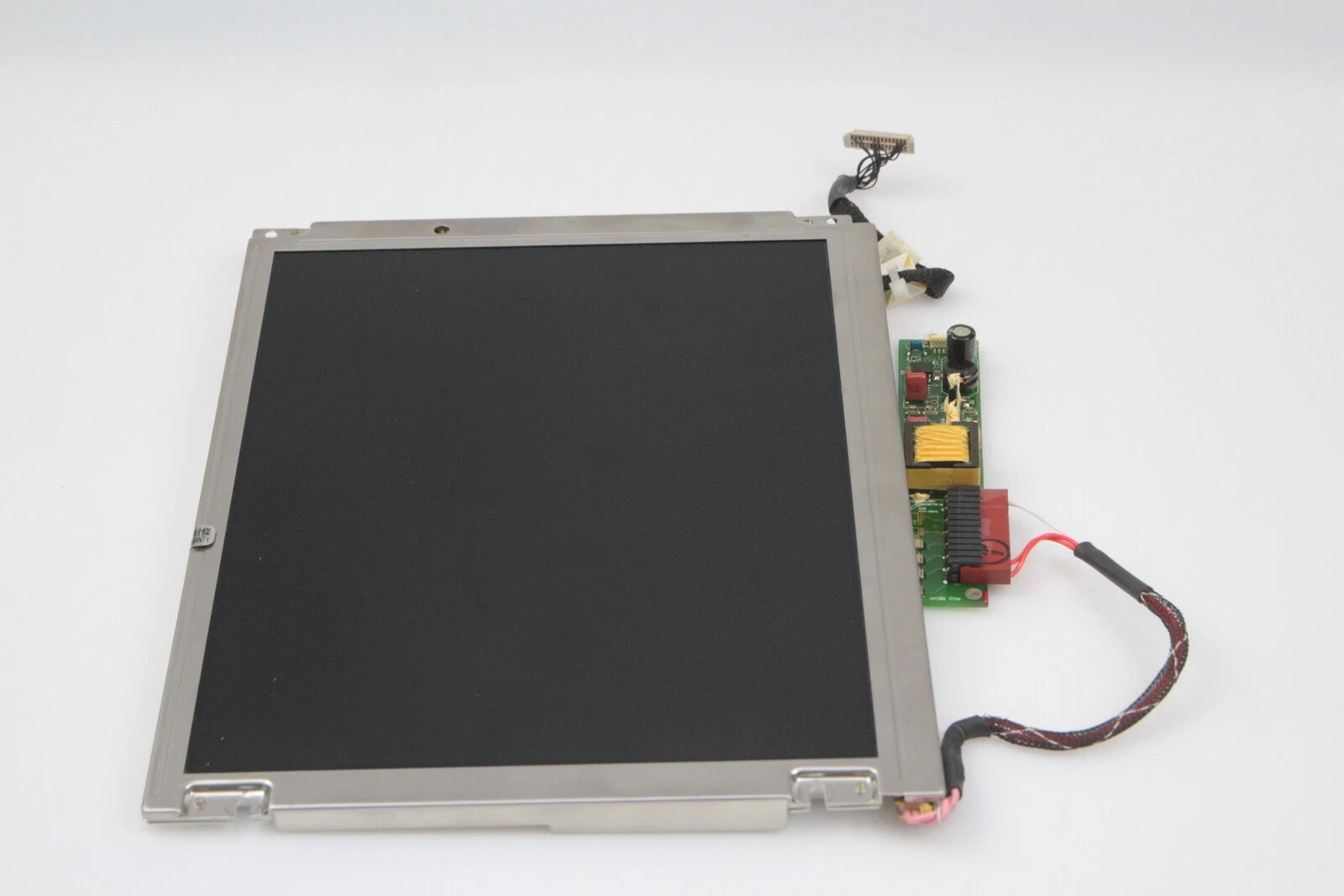

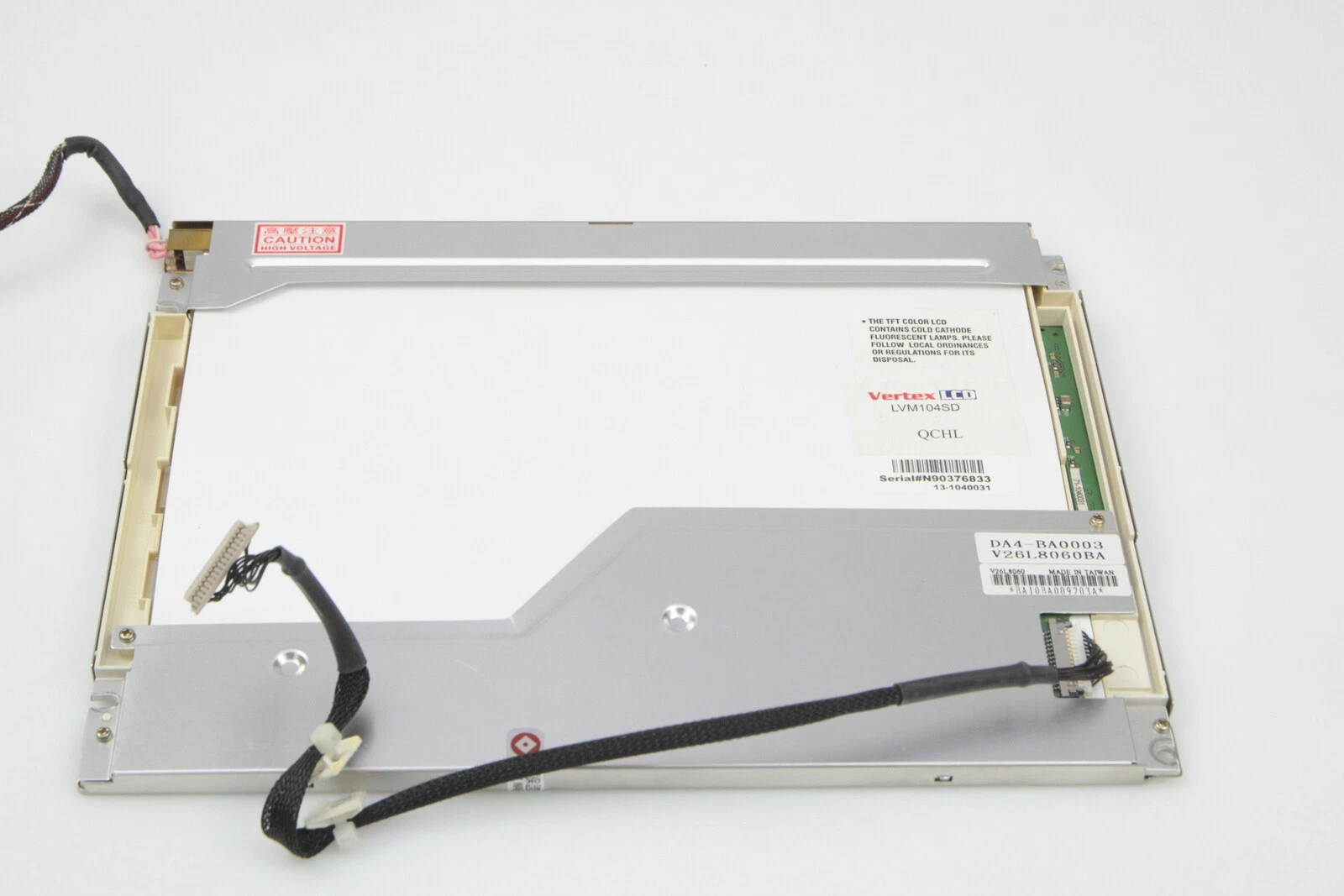

The Vertex LVM104SD is a 10.4-inch TFT LCD color display featuring an active matrix driving method, designed for use in industrial, embedded, and medical display systems where crisp visuals, robust performance, and reliable operation are required. It provides a standard SVGA resolution of 800×600 pixels, and utilizes TFT (Thin-Film Transistor) technology for improved contrast, faster response times, and vibrant color reproduction.
Its 10.4-inch screen makes it ideal for control panels, portable industrial terminals, instrumentation displays, and embedded visual interfaces. The module typically features a LVDS or TTL interface, and supports both horizontal and vertical viewing angles.
Key Features:
• 10.4" TFT active matrix display
• High brightness and contrast ratio for daylight readability
• Standard SVGA resolution: 800×600 pixels
• Wide operating temperature range suitable for industrial environments
• Available with LED or CCFL backlight depending on variant
• Long lifetime suitable for 24/7 applications
