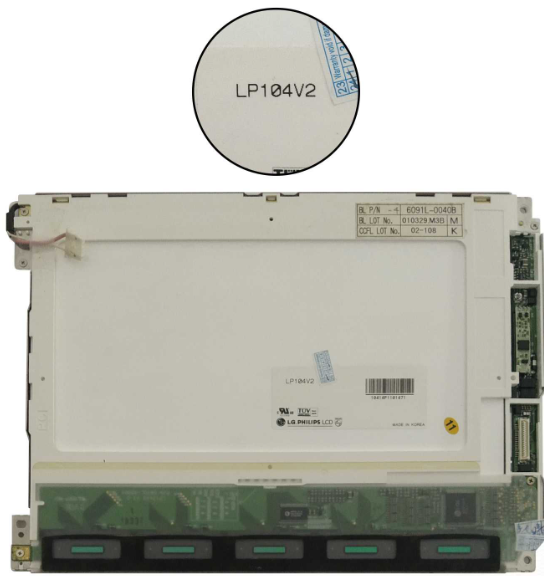

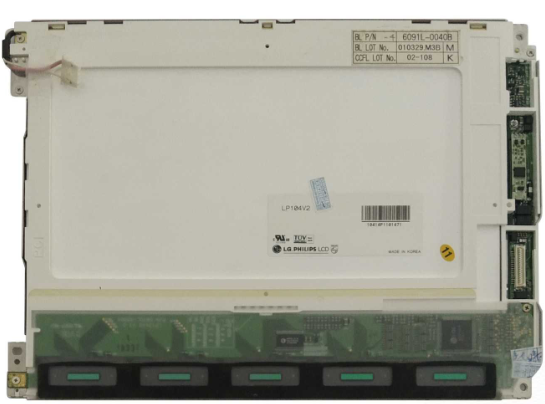

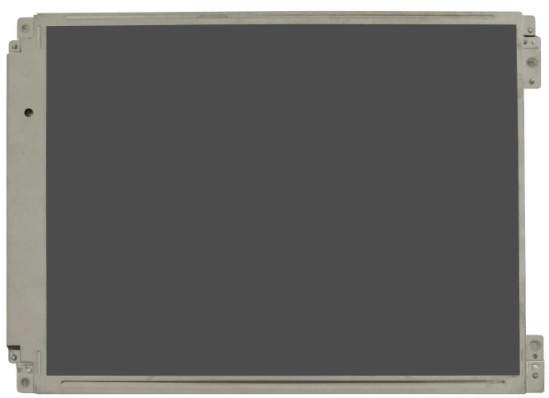

LG.PHILIPS LP104V2 LCD display

The LG.PHILIPS LP104V2 LCD Module is a 10.4-inch a-Si TFT-LCD panel designed for industrial and commercial applications that demand reliable display performance in a moderate operating environment. With a resolution of 640(RGB)×480 (VGA) and a pixel density of 76 PPI, it provides clear and detailed visuals suited for control panels, terminals, and embedded systems.

The display features an active area of 211.2(W) × 158.4(H) mm, enclosed within a larger module for flexible integration. With a typical luminance of 200 cd/m², it offers sufficient brightness for standard indoor environments. The viewing angles of 45°/45° (L/R) and 10°/30° (U/D) (CR≥10) allow decent readability in controlled lighting conditions.

The panel supports 262K colors and 42% NTSC color gamut, operating in an RGB Vertical Stripe mode. The response time of 30/50 ms (Tr/Td) is optimized for static or slowly changing content. The screen’s surface is treated with an anti-glare coating and a 3H hard layer, improving durability and reducing glare under overhead lighting.

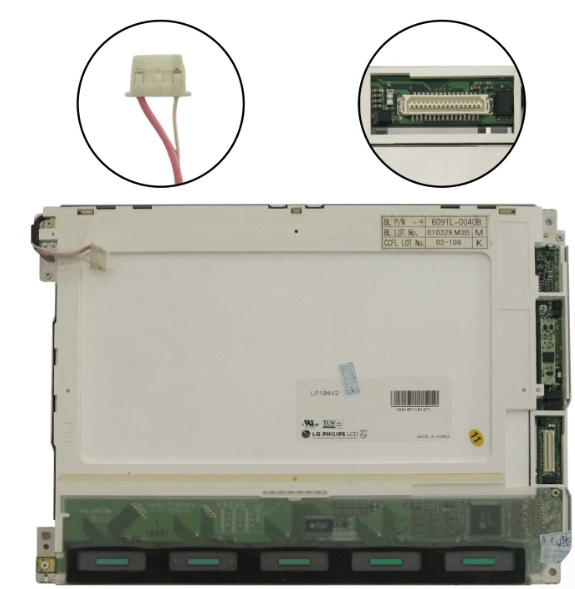

Connectivity is achieved via a Parallel RGB interface (1 channel, 6-bit) through a 31-pin connector, and it runs at a 60Hz frame rate. The module is powered by a 3.3V supply and integrates a single CCFL backlight (driver not included) with an estimated 10,000-hour lifespan.

The module is rated for operation in temperatures between 0°C and 50°C, and supports storage temperatures from -20°C to 60°C, ensuring moderate environmental resilience for non-extreme applications.
