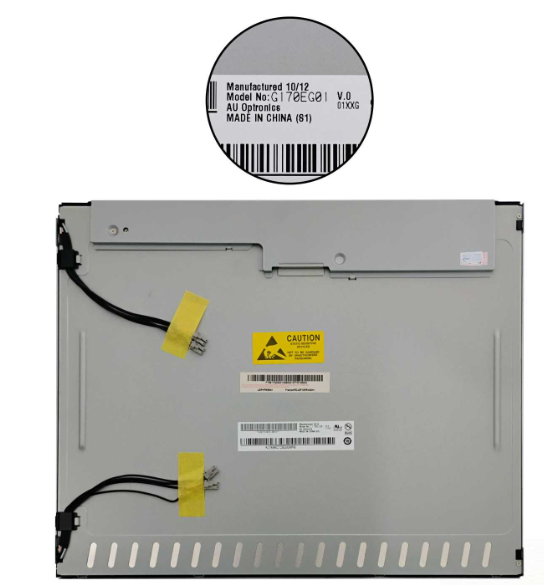

AUO G170EG01-V.0 LCD DISPLAY

The AUO G170EG01-V.0 LCD Module (G170EG01V0) is a 17.0" SXGA display delivers exceptional performance with a resolution of 1280(RGB)×1024 and a pixel density of 96 PPI, ensuring sharp image clarity. It features an expansive active area of 337.92 mm × 270.336 mm, encased within a 358.5 mm × 296.5 mm × 18 mm outline, making it ideal for industrial and professional applications.

With a brightness of 350 cd/m² and a strong contrast ratio of 800:1, this panel provides vibrant images and deep blacks. The viewing angles of 80/80/60/80 degrees (CR≥10) maintain visual consistency from various positions. The response time is 20/10 ms (Tr/Td), supporting smooth image transitions.

Built with a-Si TFT-LCD technology and a TN, Normally White, Transmissive mode, the panel also features antiglare and hard coating (3H) for enhanced durability and viewing comfort. It supports 16.7M colors at 72% NTSC, using an LVDS 2-channel, 8-bit, 30-pin connector.

Powered by 5.0V, it incorporates a WLED backlight rated for 50,000 hours with an integrated driver. It operates reliably between −30°C to 85°C, suitable for harsh environments.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
