Technical Specifications

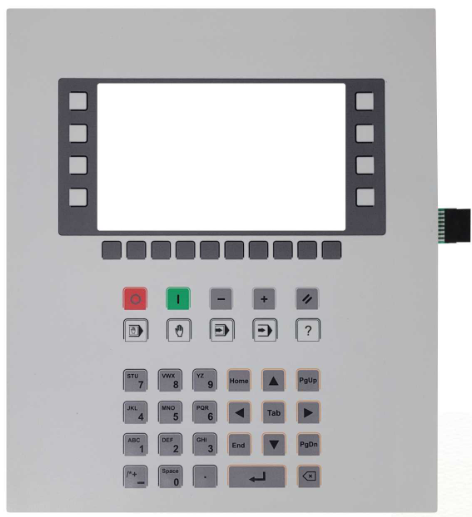

Product Type: CNC Controller Keypad
Compatible Model:ESA S530
Material:
Polycarbonate (PC) overlay membrane
Tough, transparent front surface with textured anti-glare finish
Reinforced with PET backing for dimensional stability
Key Configuration:
Custom key layout matching the ESA S530 controller
Includes multi-function keys for axis movement, spindle control, cycle start/stop, etc.
High-resolution legends printed with UV-resistant inks
Mounting:
Self-adhesive backing compatible with original panel dimensions
Pre-cut for seamless alignment and peel-and-stick installation
Features:
Oil-resistant and solvent-tolerant surface, suitable for CNC machine environments
Highly legible key graphics for use in dimly lit or dusty workshops
Excellent tactile response via embedded dome or embossed key layers
Rated for over 1 million keystrokes per key
Sealed to resist dust, coolant spray, and vibration
Environmental Ratings:
Operating Temp: -10°C to +60°C
Storage Temp: -20°C to +70°C
Surface protection equivalent to IP54–IP65 (when mounted on compatible panel)
