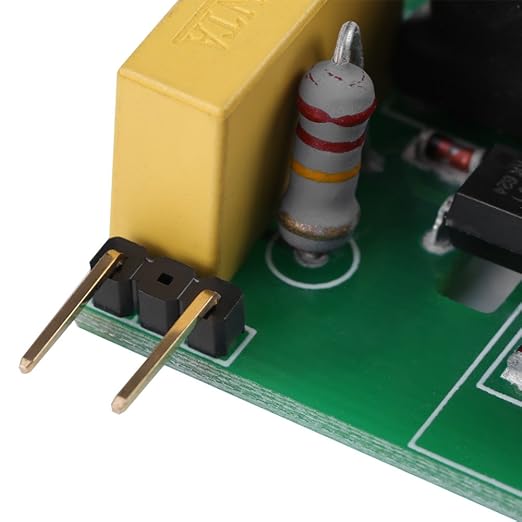

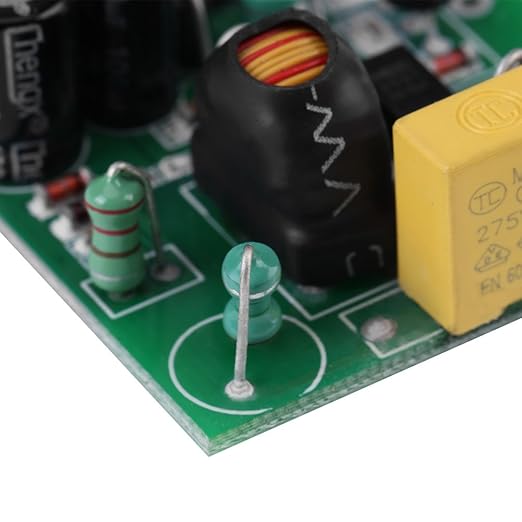

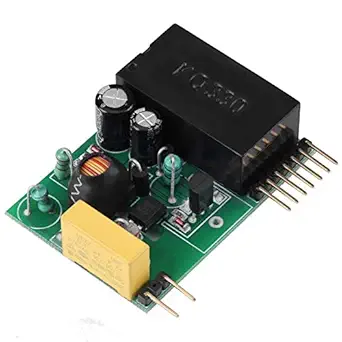

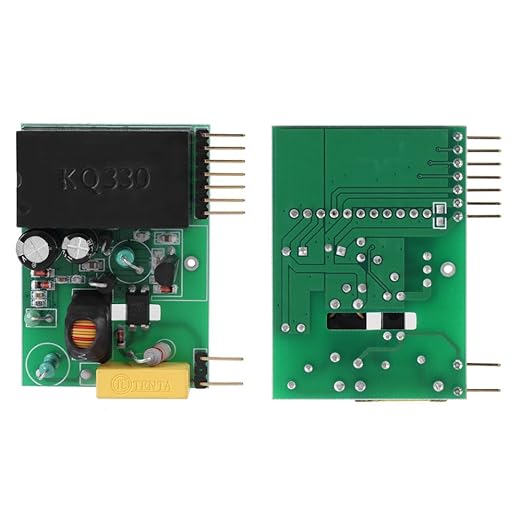

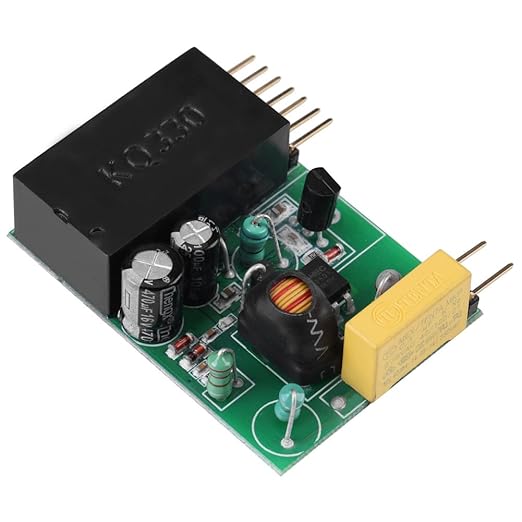

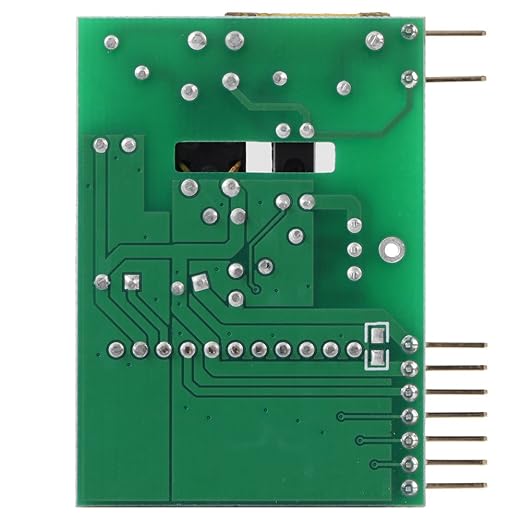

      RF AND WIRELESS MODULE KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module
      KQ-130F Power Line Carrier Module

      KQ-130F Power Line Carrier Module

      Specifications:
      1. Model: KQ-130F
      2. Working Voltage: 110V–240V AC
      3. Interface: UART/TTL (typically 3.3V/5V logic)
      4. Communication Speed: Up to 9600 bps
      5. Transmission Distance: Up to 1 km (under optimal power line conditions)
      6. Modulation Method: FSK (Frequency Shift Keying)
      7. Operating Frequency Band: 30–500 kHz
      8. Dimensions: Approx. 50mm x 40mm
      9. Operating Temperature: -20°C to +70°C
      10. Applications: Smart metering, industrial control, building automation, remote lighting control, IoT gateways

      Non-returnable
      ₹850.00 ₹1,000.00
      Product Details

      The KQ-130F is a Power Line Carrier (PLC) communication module designed to transmit and receive data over existing AC power lines. It eliminates the need for additional wiring, making it an efficient solution for home automation, energy metering, and remote control systems.

      Features:
      • Bi-directional communication over AC power lines
      • Operates on 110V–240V AC, compatible with standard electrical infrastructure
      • Integrated modulation/demodulation circuit for stable data transfer
      • Ideal for low-speed data transmission in smart grid or IoT environments
      • Compact and easy to integrate with MCUs or microcontrollers
      • Supports UART/TTL interface for system integration
      • High anti-interference capability for noisy environments
