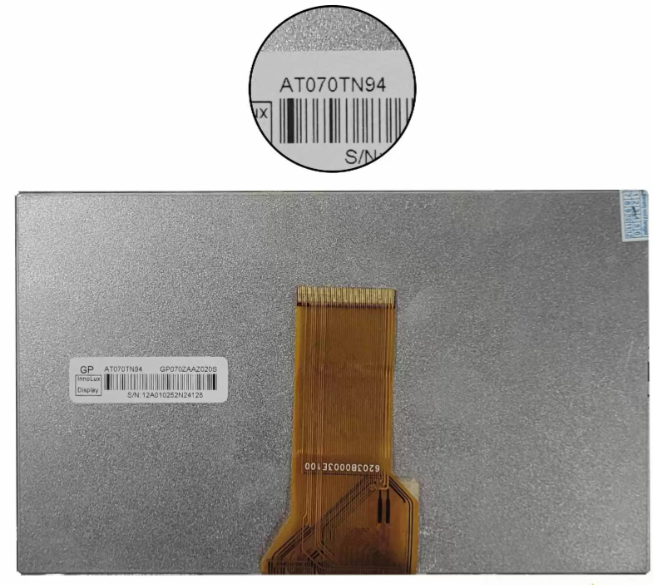

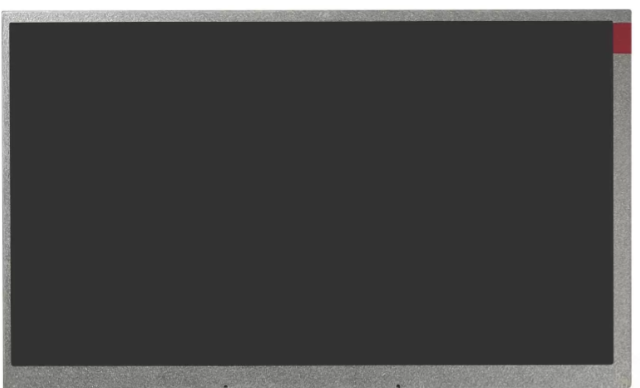

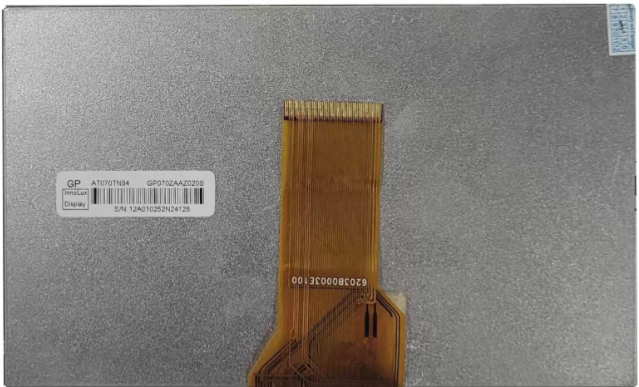

Innolux AT070TN94 LCD DISPLAY

Specification:

• Display Size: 7.0 inches diagonal

• Resolution: 800 × 480 pixels (WQVGA)

• Display Type: a‑Si TFT LCD, transmissive

• Brightness: Approximately 400 cd/m²

• Contrast Ratio: Around 500:1

• Viewing Angles: About 80° horizontal / 60° vertical

• Response Time: ~25 ms (combined rise/fall)

• Color Depth: 262K colors (6‑bit)

• Interface: 24‑bit RGB (TTL‑level)

• Backlight: White LED, edge‑lit

• Input Voltage: 3.3 V logic

• Operating Temperature: –20 °C to +70 °C

• Storage Temperature: –30 °C to +80 °C

• Surface Finish: Anti‑glare with 3H hard coating

• Mounting Style: Panel/frame mountable

• RoHS Compliant
