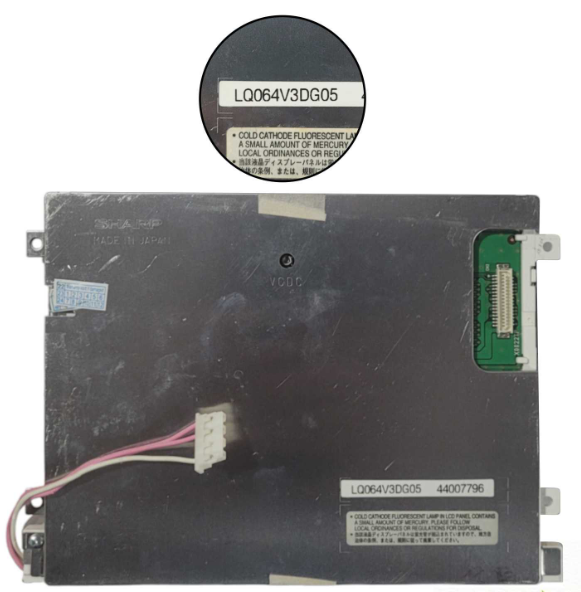

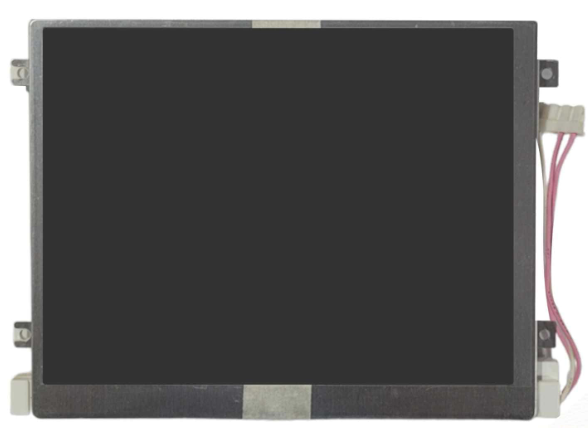

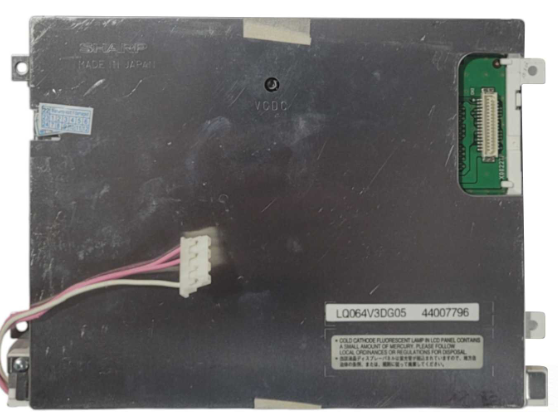

The Sharp LQ064V3DG05 is a high-performance 6.4-inch a-Si TFT-LCD module engineered to meet the demanding requirements of compact, high-precision display systems used in industrial and embedded applications. Featuring a VGA resolution of 640(RGB) × 480 and a pixel density of 124 PPI, this display provides crisp and detailed visuals ideal for diagnostic tools, control panels, and portable instrumentation.
The module’s active display area measures 130.56 mm (W) × 97.92 mm (H), offering ample screen space within a compact footprint suitable for integration into space-constrained devices. It utilizes TN (Twisted Nematic) technology in a normally white, transmissive mode, delivering bright and clear imagery when powered. The inclusion of an RGB vertical stripe treatment enhances color fidelity and sharpness, supporting a broad 262K color palette for vibrant and accurate color representation.
Illumination is provided by two CCFL backlight tubes, which ensure consistent brightness and dependable visibility over extended periods of continuous use. While specific luminance and contrast ratio values are not detailed, the CCFL system is recognized for its even light distribution and long operational life.

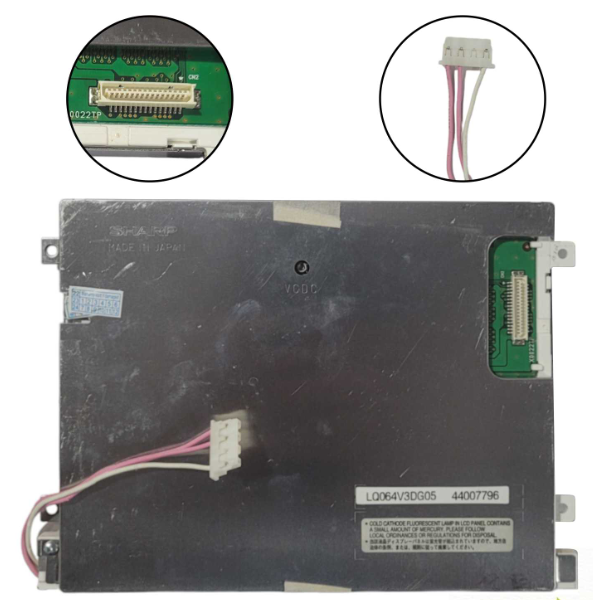

The display module interfaces via a Parallel RGB connection (1 channel, 6-bit) and operates at a 60 Hz frame rate, facilitating smooth rendering of graphical content. Though precise physical dimensions, weight, and environmental specifications are not listed, the module is designed for easy integration into a wide variety of industrial and embedded systems requiring reliable performance in compact form factors.
