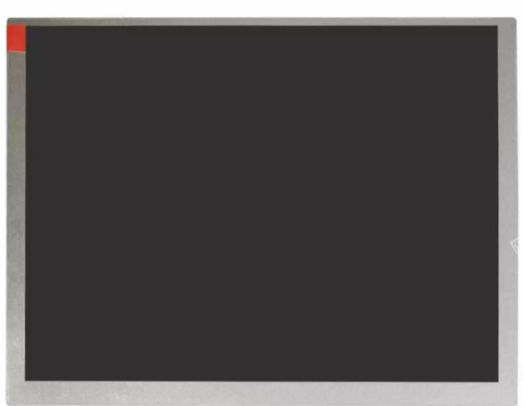

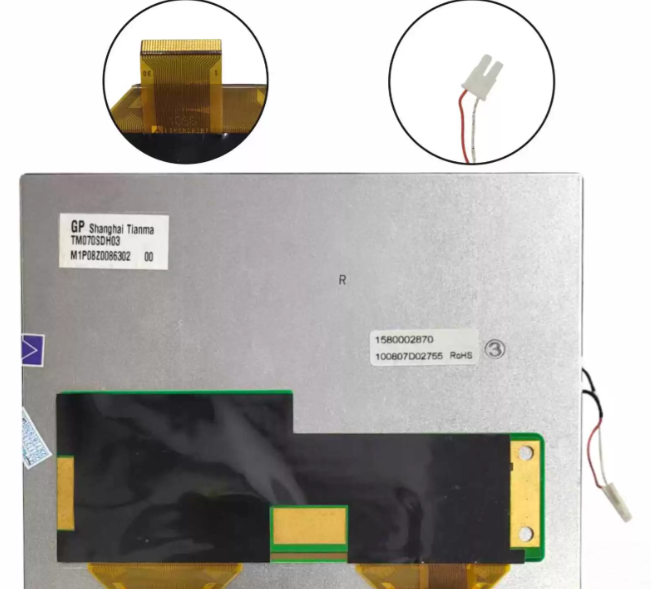

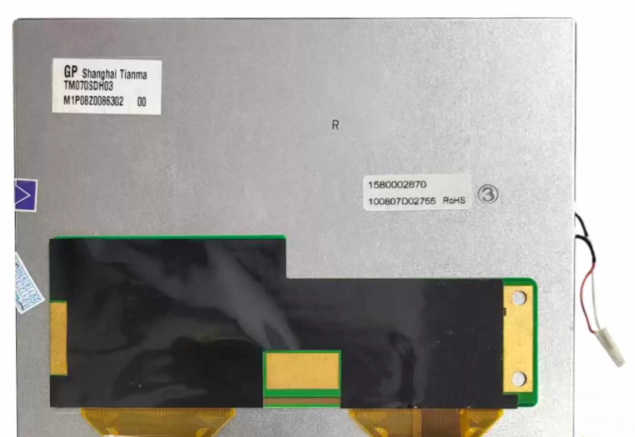

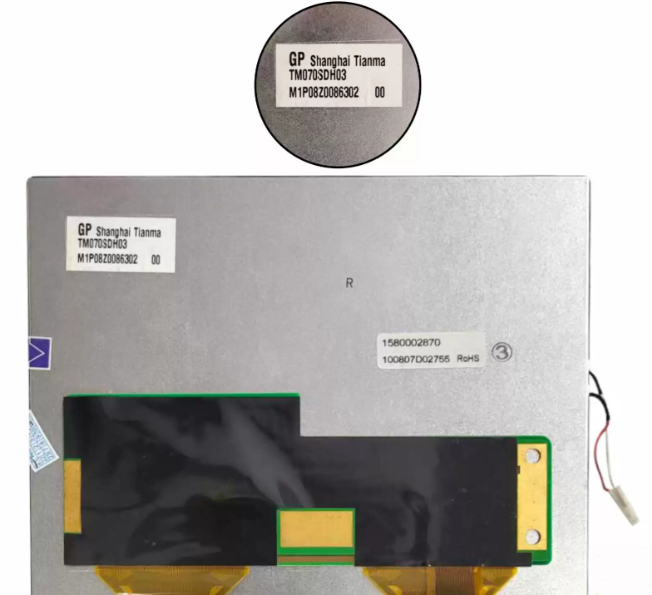

Tianma TM070SDH03 LCD display

Specification:

1. Resolution: 800 × 480 pixels (WVGA)

2. Aspect Ratio: 15:9

3. Display Type:TFT LCD, transmissive, normally white

4. Brightness:400–450 cd/m² (Typical)

5. Contrast Ratio:500:1 (Typical)

6. Color Depth:16.7 million colors (24-bit RGB)

7. Viewing Angles:70° Left, 70° Right, 60° Up, 70° Down

8. Backlight Type:White LED (edge-lit)

9. Backlight Lifetime:≥ 20,000 to 30,000 hours

10. Interface Type:24-bit RGB parallel interface (40-pin FPC)

11. Input Voltage:3.3V (Typical)

12. Touchscreen: Not included, available in touch-integrated versions

13. Power Consumption: Optimized for low-power embedded systems

14. Operating Temperature:–20°C to +70°C

15. Storage Temperature:–30°C to +80°C

16. Mounting Options: Suitable for front panel, bezel, or embedded enclosure
