Specifications:
Brightness up to 400–500 cd/m²
LVDS interface support
16.2 million colors display
LED backlight industrial grade
12.1 inch TFT LCD, 800 × 600 resolution
Non-returnable
₹12,250.00 ₹16,000.00





Specifications:
Brightness up to 400–500 cd/m²
LVDS interface support
16.2 million colors display
LED backlight industrial grade
12.1 inch TFT LCD, 800 × 600 resolution

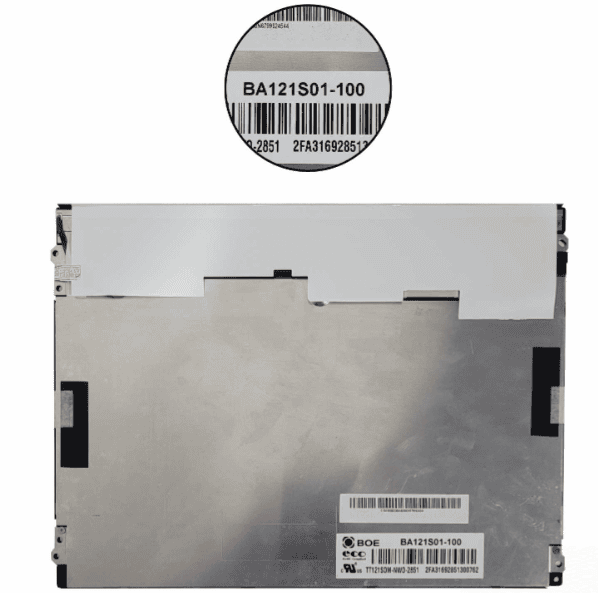

The BOE BA121S01-100 is a 12.1-inch a-Si TFT LCD panel engineered for industrial, medical, and embedded systems that require stable image performance, rugged durability, and long-term availability. This module features a resolution of 800×600 pixels (SVGA), delivering sharp, clear visuals even in demanding operating environments.
Equipped with white LED backlighting, the BA121S01-100 offers low power consumption, a long service life, and enhanced brightness. Its wide operating temperature range and robust mechanical design make it ideal for integration into human-machine interfaces (HMIs), diagnostic devices, and outdoor terminals.
