Key Specifications

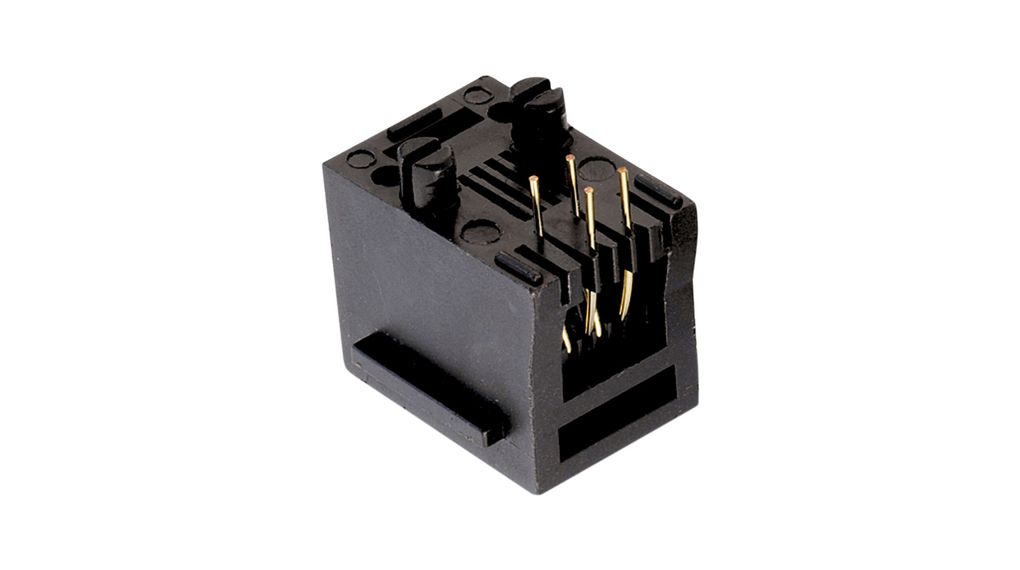

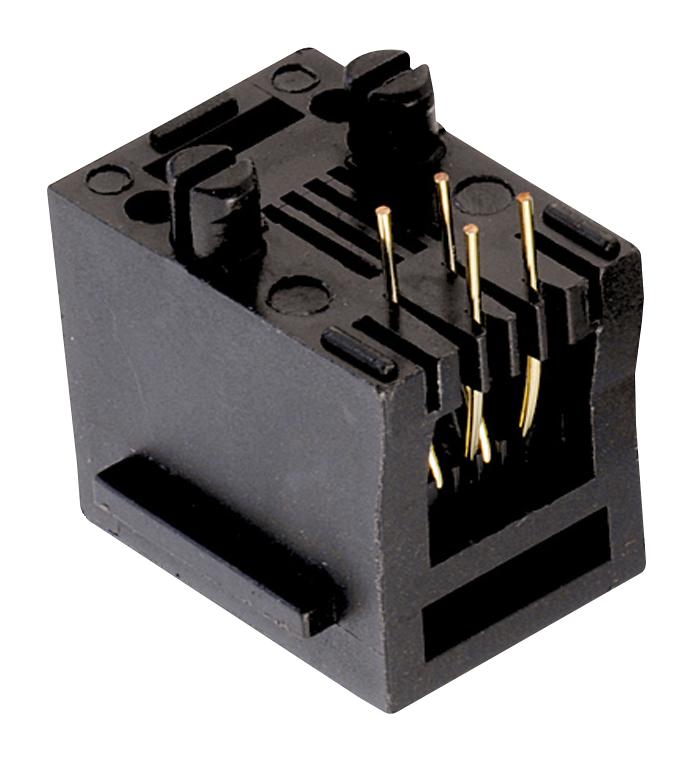

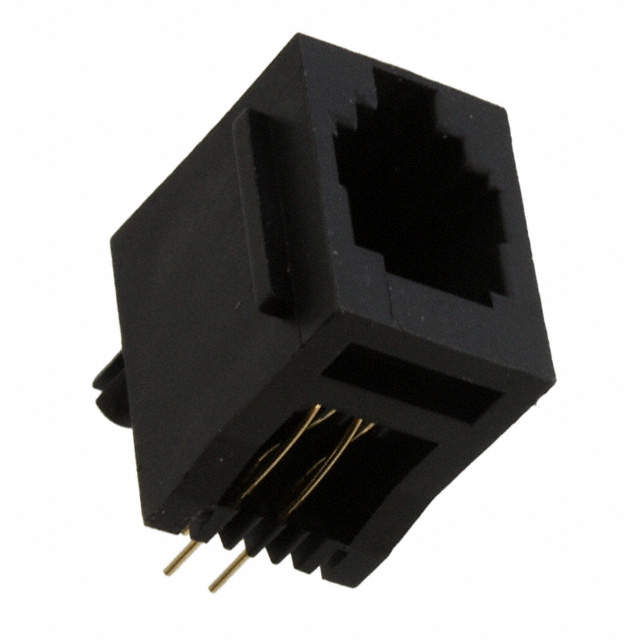

Model: WR‑MJ series, 4P4C modular jack
Orientation: Vertical, through-hole PCB mount
Contacts: Copper-alloy, gold-plated stamped type
Insulator: Black PBT thermoplastic, UL94 V‑0 flame rating
Voltage Rating: 120 VAC; withstands 1,000 VAC isolation
Contact Resistance: ≤ 20 mΩ
Insulation Resistance: ≥ 500 MΩ
Temperature Range: –40 °C to +85 °C
Shielding: Unshielded
Features: Board‑lock and panel‑stop for secure mounting
Non-returnable
₹80.00
