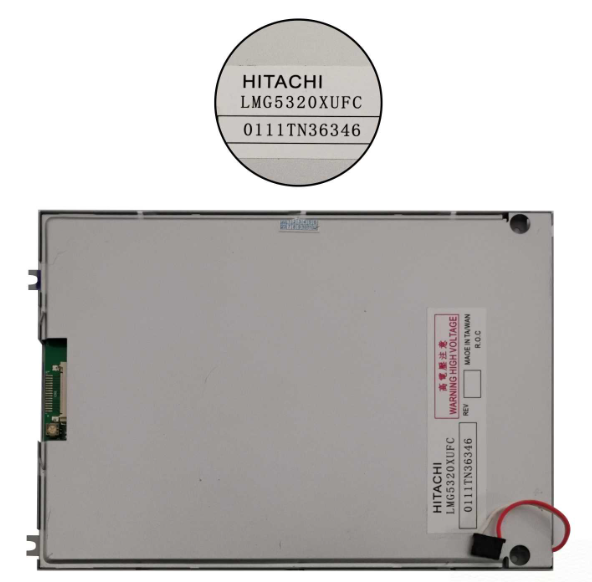

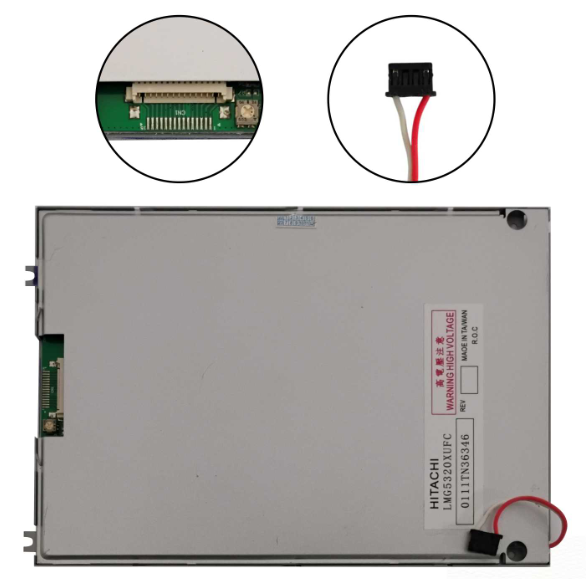

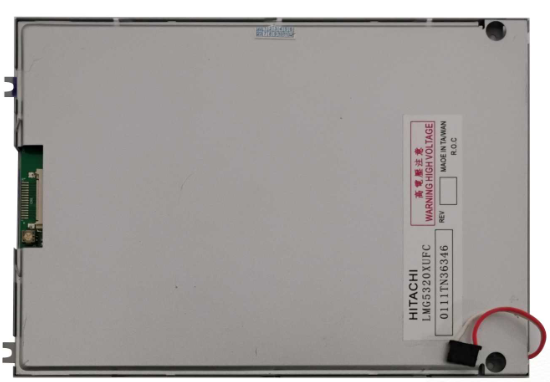

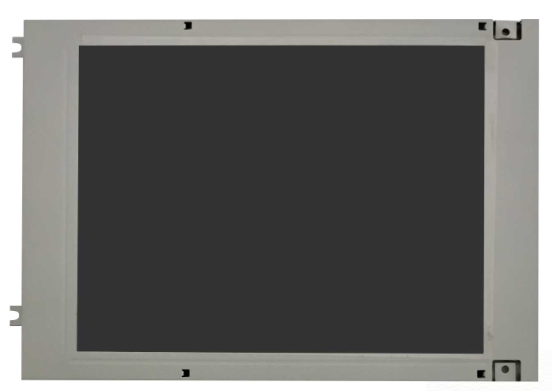

The Hitachi LMG5320XUFC is a 7.2-inch monochrome FSTN-LCD display module that delivers VGA resolution (640×480 pixels) in a compact and rugged industrial design. Engineered for demanding applications, it features CCFL backlighting, excellent contrast, and wide viewing angles, ensuring clear visibility across varied operating environments. Its robust construction and long-term availability make it ideal for industrial instrumentation, embedded control panels, and legacy system upgrades.
Mechanical Specifications:
Module Dimensions: Approx. 180 mm × 140 mm × ~13 mm
Active Area: ~145 mm × 109 mm
Weight: Approx. 300–400 grams
Frame: Metal frame for durability and EMI shielding
Mounting: Screw-hole flanges for secure panel installation
Electrical & Environmental Specs:
Logic Voltage: 5V DC
Backlight Voltage: Requires external inverter (typ. 350–600V AC for CCFL tube)
Power Consumption: Low power draw for continuous operation
Operating Temperature: –10 °C to +60 °C
Storage Temperature: –20 °C to +70 °C
Shock/Vibration Resistance: Industrial grade reliability
Applications:
Human-Machine Interfaces (HMIs)
Industrial control systems
Measurement and test equipment
Medical and diagnostic instruments
Military and aviation-grade embedded terminals
Legacy system replacements requiring VGA resolution
