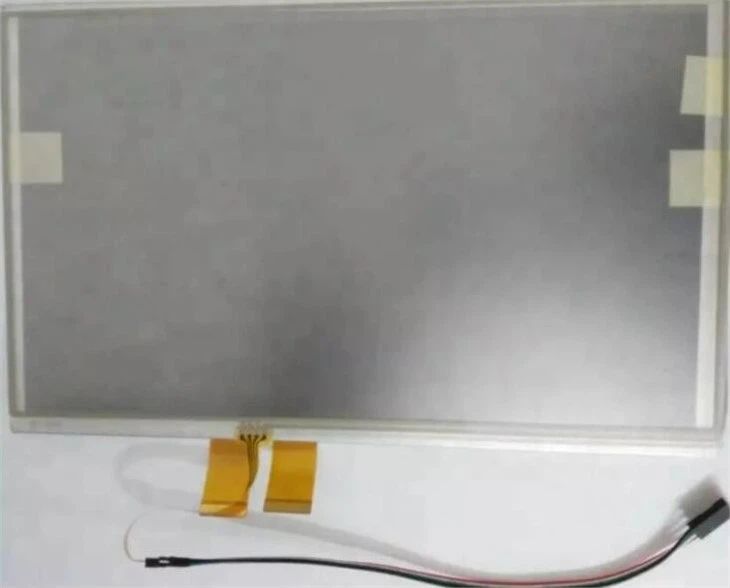

The A101VW01 V3 is a 10.1-inch (diagonal) active matrix TFT-LCD module manufactured by AU Optronics. It uses amorphous silicon (a-Si) TFT technology and is designed primarily for industrial display applications, automotive systems, portable terminals, and multimedia devices requiring high brightness, wide viewing angles, and low power consumption.
This display module supports Widescreen VGA (1024x600) resolution and offers reliable performance under extended environmental conditions. It features a wide aspect ratio of 16:9, LED backlight, and a robust construction suitable for both indoor and outdoor use when paired with appropriate housing.
Key Features
10.1 inch TFT LCD panel with a-Si technology
Resolution: 1024 × 600 (WSVGA), 16:9 aspect ratio
Interface: LVDS (Low Voltage Differential Signaling)
Backlight: White LED, edge-lit
Display mode: Normally white, transmissive
Brightness: Approximately 350–400 cd/m²
Contrast Ratio: Around 500:1
Viewing Angle: 70/70/50/70 (L/R/U/D)
Response Time: ~16 ms
Surface: Anti-glare or matte finish
RoHS compliant
