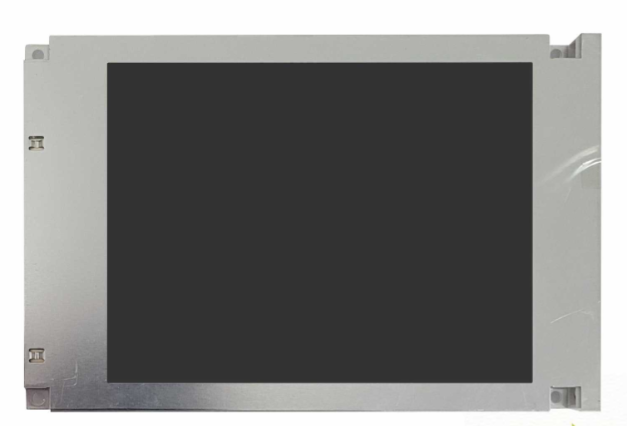

The Hitachi SP14Q002 is a 5.1-inch monochrome FSTN (Film Super Twisted Nematic) LCD module designed to meet the demands of rugged industrial and embedded systems. With a 240×128 pixel resolution, this display delivers clear, high-contrast text and graphical output suitable for professional control applications. The CCFL backlight ensures optimal visibility even in low-light environments, and its robust construction supports consistent performance in harsh conditions.
Mechanical Specifications:
Outline Dimensions: ~160 mm (W) × 109 mm (H) × 14 mm (D)
Active Area: ~122 mm (W) × 64 mm (H)
Weight: Approx. 200–220 grams
Mounting: Metal bezel with multiple mounting points
Interface: Parallel interface (e.g., 8-bit or 4-bit data bus)

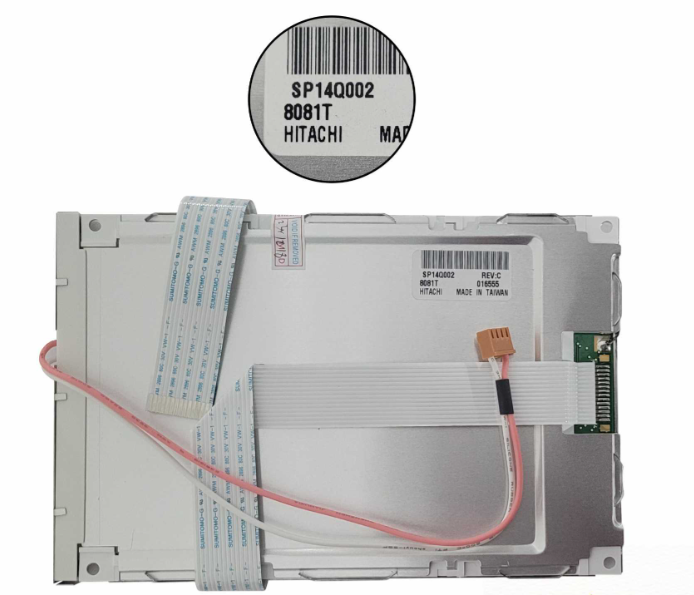

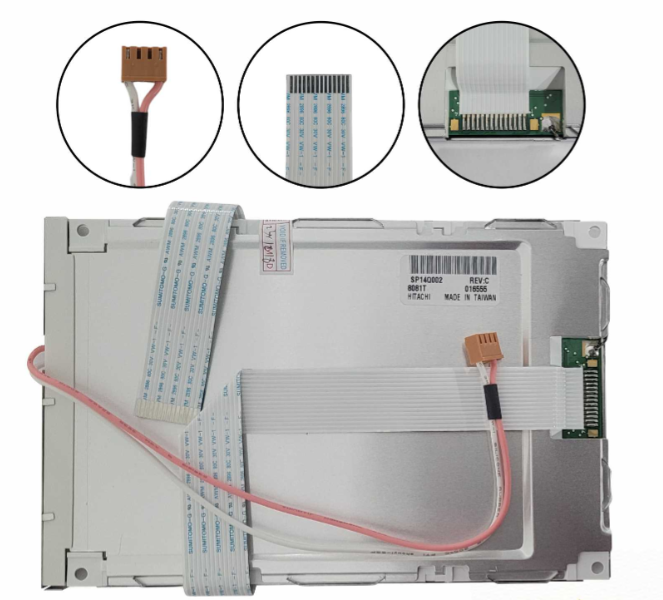

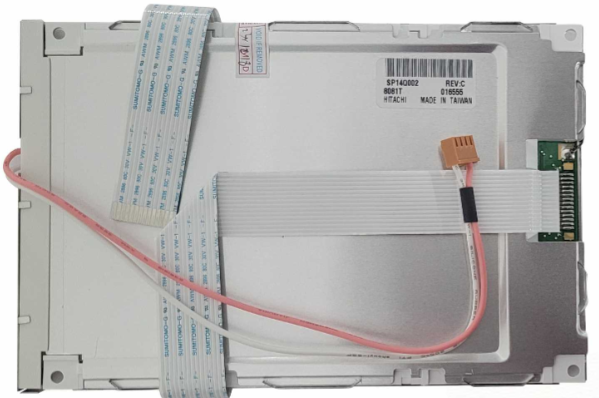

Connector Type: Typically FFC or pin header
Electrical & Environmental Specifications:
Logic Voltage: 5V DC
Backlight Voltage: External inverter required for CCFL (usually 300–600V AC)
Operating Temperature: –10 °C to +60 °C
Storage Temperature: –20 °C to +70 °C
Touch Panel: Not included (can be retrofitted)
Compliance: Likely pre-RoHS, verify per batch/source
Applications:
Industrial automation and HMIs
Portable diagnostic instruments
Medical equipment interfaces
Legacy system maintenance and upgrades
Embedded control terminals
