RF AND WIRELESS MODULEQUECTEL MODULES QUECTEL EC20 CE FILG

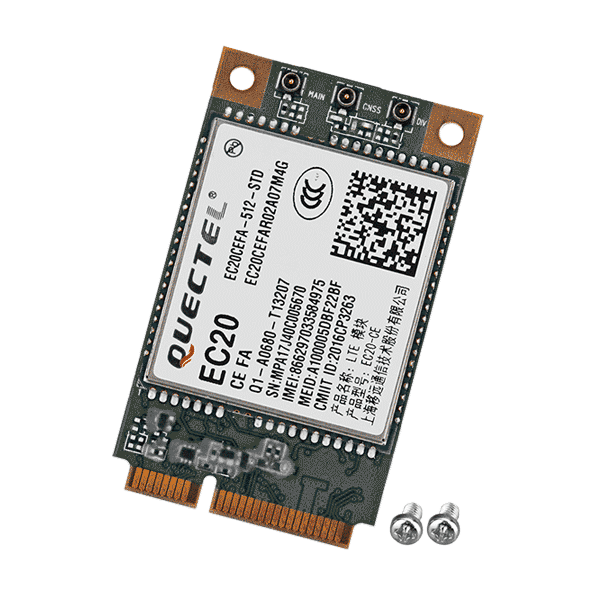

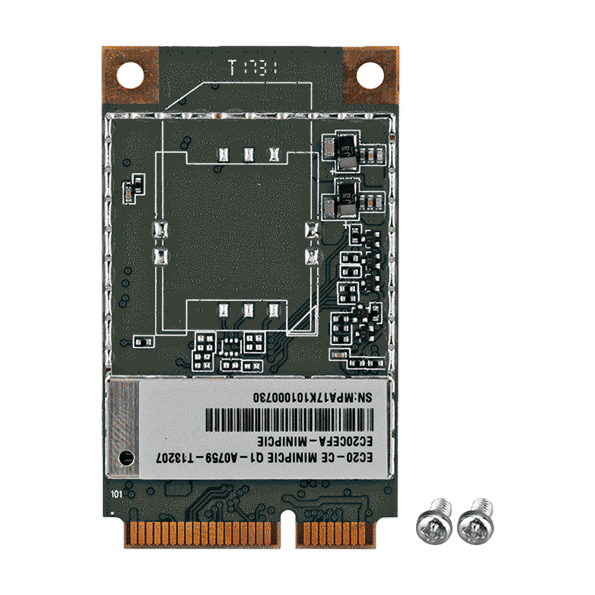

QUECTEL EC20 CE FILG
QUECTEL EC20 CE FILG
QUECTEL EC20 CE FILG
QUECTEL EC20 CE FILG

QUECTEL EC20 CE FILG

Specifications:

  • Cellular Standards:

    • LTE Bands: B1/B3/B5/B7/B8/B20/B38/B39/B40/B41

    • UMTS: B1/B5/B8

    • GSM: 850/900/1800/1900 MHz

  • Peak Data Rates:

    • LTE DL: up to 150 Mbps

    • LTE UL: up to 50 Mbps

    • HSPA+/UMTS fallback when LTE unavailable

  • GNSS System Support: GPS, GLONASS, BeiDou, Galileo

  • Interface Options: USB 2.0, UART, PCM (audio), ADC, GPIO pins

  • Voltage Range: 3.0–4.5 V (nominal 3.8 V)

  • Current Consumption (typical):

    • Idle: ~10 mA

    • Transmit Peak: ~450 mA

  • Operating Temperature: –40 °C to +85 °C

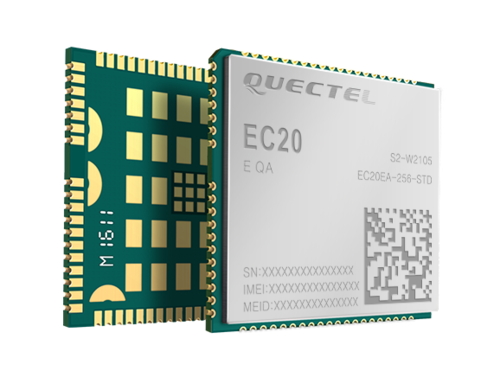

  • Form Factor: LGA 31.5 × 29.5 × 2.2 mm

  • Weight: ~8 g

  • Certifications: CE, RED, GCF, FCC, IC

Non-returnable
₹2,245.00 ₹2,500.00
Product Details

The Quectel EC20 CE FILG is a global LTE Cat 4 wireless communication module tailored for robust data connectivity across M2M, IoT, and industrial applications. It offers high-speed cellular access, embedded GNSS capabilities, and versatile interfaces, making it ideal for gateways, trackers, smart meters, and remote control systems.


Features:

  • LTE Cat 4 connectivity supporting high-speed data

  • Full band coverage across global LTE, UMTS, and GSM frequencies

  • Embedded GNSS including GPS, GLONASS, BeiDou, and Galileo

  • Rich interface suite: USB 2.0 HS, UART, PCM, and multiple GPIOs

  • Industrial-grade performance with –40 °C to +85 °C temperature tolerance

  • Advanced security support including SIM authentication and firmware protection

  • Rapid integration via QuecOpen SDK and AT command set

  • Low power consumption with power-saving modes and automatic network monitoring
