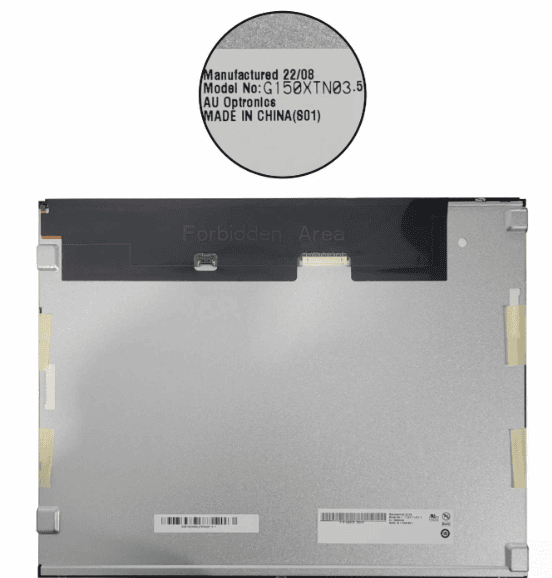

AUO G150XTN03.5 LCD DISPLAY

The AUO G150XTN03.5 LCD Module (G150XTN03.5) is 15.0" LCD offers an XGA resolution of 1024 × 768 (85 PPI) and an active area of 304.128(W) × 228.096(H) mm, encased in a 326.5(W) × 253.5(H) × 10(D) mm outline. With a typical luminance of 350 cd/m², it delivers sufficient brightness for various applications. Moreover, the 800:1 contrast ratio enhances image clarity, providing excellent differentiation between light and dark areas.

In terms of visibility, the display ensures 80° horizontal, 70° vertical viewing angles (CR ≥ 10), allowing for consistent image quality from multiple perspectives. Additionally, the 5.7 ms response time (Tr) and 2.3 ms (Td) allow smooth transitions for dynamic content, making it well-suited for interactive applications.

The panel operates on TN technology in a normally white, transmissive mode, coupled with antiglare and 3H hard coating treatments for improved durability and reduced reflections. With support for 16.2 million colors and 60% NTSC coverage, the display provides vibrant and accurate color reproduction.

Connectivity options include a 20-pin LVDS (1 ch, 6/8-bit) interface, ensuring seamless integration with a variety of embedded systems. Powered by a 3.3V supply, the display is complemented by a WLED backlight, rated for 70,000 hours, with an LED driver for efficient energy use.

Finally, the display operates within a temperature range of 0°C to 65°C, and can be safely stored between −20°C and 65°C, making it suitable for industrial and semi-outdoor applications.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
