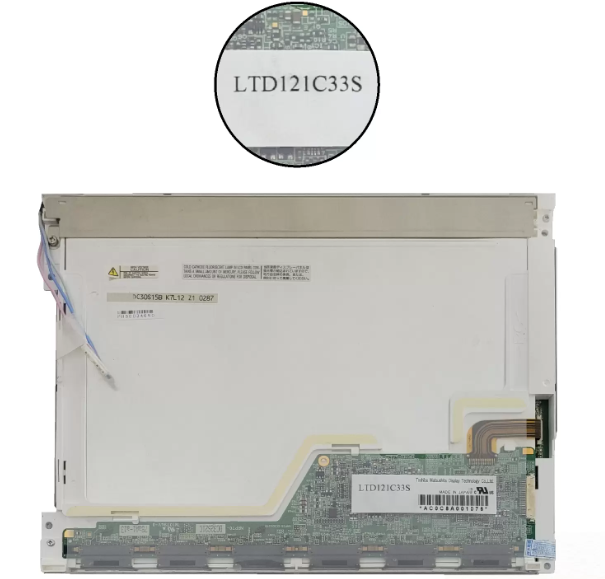

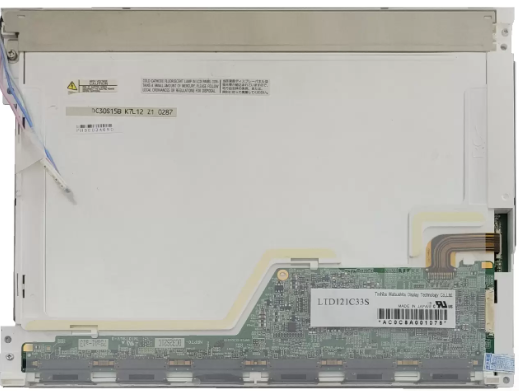

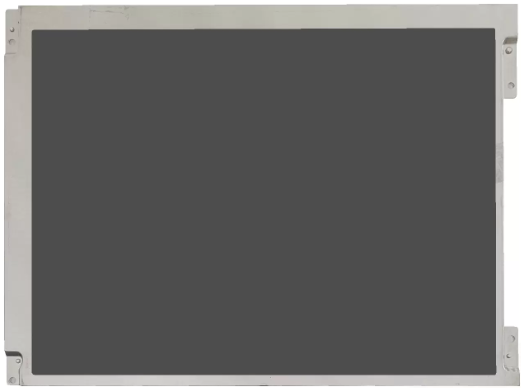

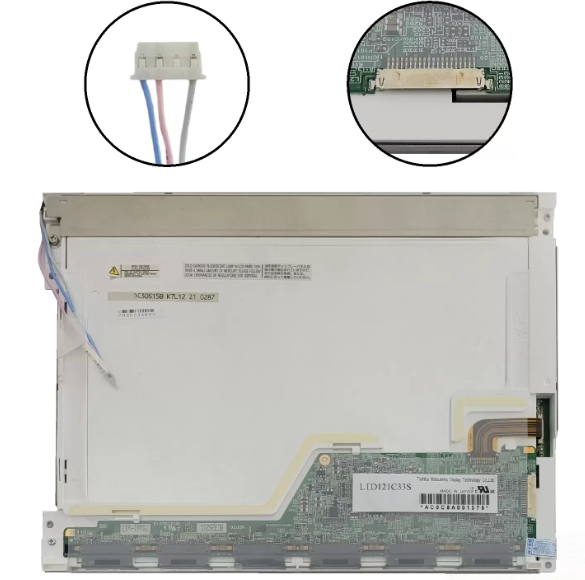

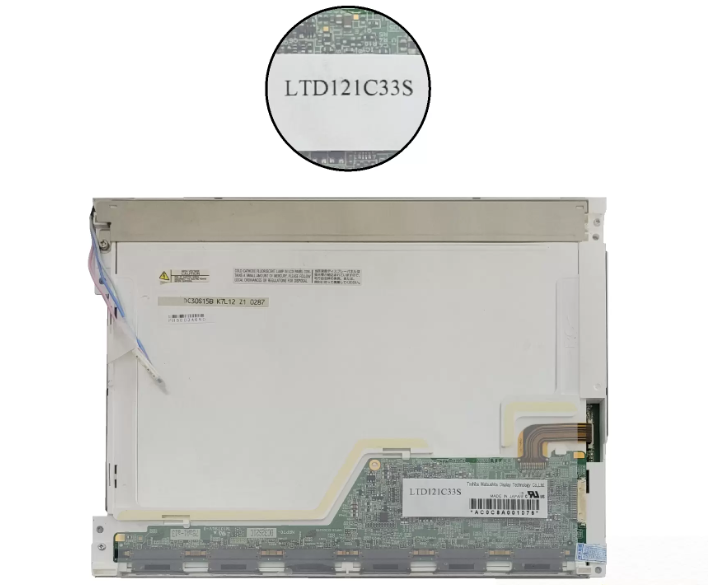

Toshiba LTD121C33S LCD display

The Toshiba LTD121C33S LCD Module 12.1″ SVGA TFT-LCD Display is a highly reliable and efficient module, ideal for a wide range of industrial and commercial applications. With a screen diagonal of 12.1 inches and a resolution of 800(RGB)×600 (SVGA), this display delivers clear visuals at a pixel density of 82 PPI (pixels per inch). Its active area measures 246 mm (W) × 184.5 mm (H), providing ample space for detailed content, while its compact outline dimensions of 278.3 mm (W) × 209 mm (H) × 11 mm (D) make it easy to integrate into existing systems. The display offers a brightness of 350 cd/m² and a contrast ratio of 500:1, producing crisp, bright images even in variable lighting conditions. It features a wide viewing angle of 70° horizontal and 50°/70° vertical (typical, CR≥10), ensuring good visibility from different angles. The TN panel operates in normally white, transmissive mode, ensuring consistent brightness. With a response time of 10ms for rise and 25ms for fall, the display offers smooth transitions for multimedia and dynamic content. It supports 262K colors, allowing for accurate color reproduction. The signal interface is LVDS (1 channel, 6-bit) with a 20-pin connector, which simplifies integration with various systems. Powered by a 3.3V supply, the display uses two CCFLs (cold cathode fluorescent lamps) for backlighting, with a lifespan of 50,000 hours. Its operating temperature ranges from -10°C to 65°C, and it can be stored at temperatures from -20°C to 80°C. Weighing just 680 grams, the display is lightweight and durable. This module is suitable for use in demanding environments such as industrial control panels, medical devices, and monitoring equipment.
