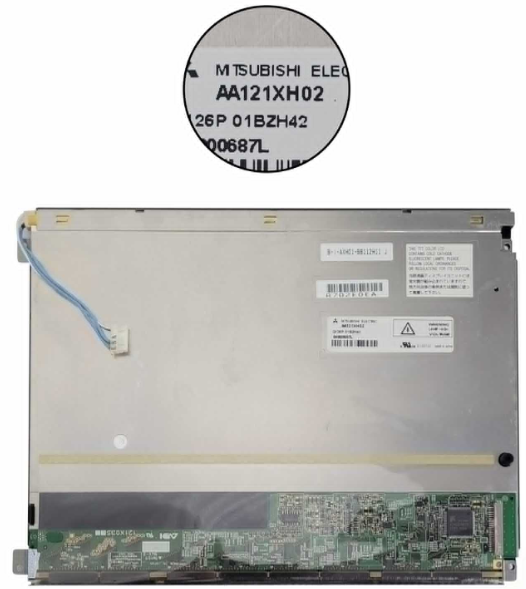

Mitsubishi AA121XH02 LCD display

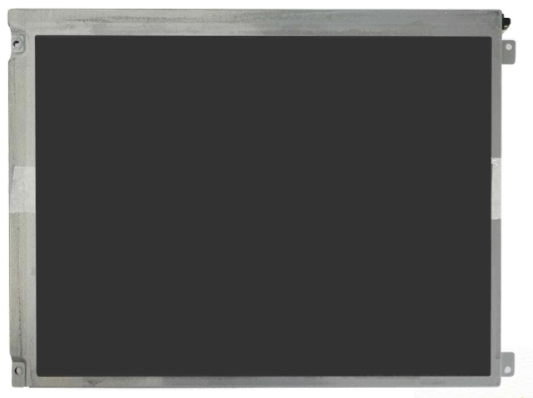

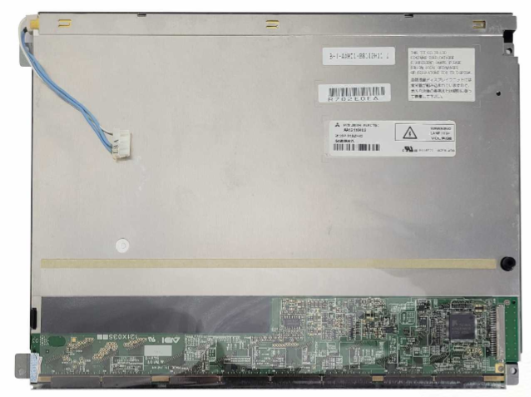

The Mitsubishi AA121XH02 LCD Module is a 12.1″ TFT-LCD display featuring a 1024×768 XGA resolution with a 105 PPI pixel density, providing clear and detailed images. The active area measures 245.76(W)×184.32(H) mm, offering a balanced size for compact applications. With a luminance of 280 cd/m², it is suitable for environments with moderate lighting but may not perform well in bright, direct light.

This display boasts a contrast ratio of 400:1, ensuring good differentiation between light and dark elements. The viewing angle of 85/85/70/80 degrees (CR ≥ 10) offers flexibility for multiple viewing positions, making it ideal for shared or versatile installations. The response time of 6/19 ms (Tr/Td) supports smooth transitions for general industrial use.

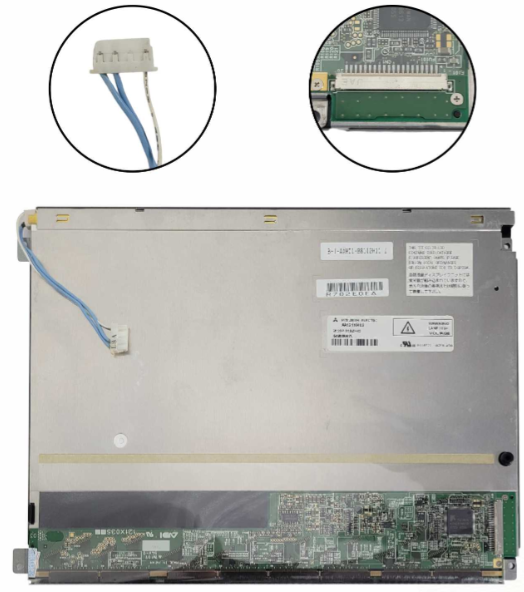

The screen is treated with a hard coating (2H) and antireflection treatment, improving scratch resistance and reducing glare, ensuring better outdoor readability. It features an LVDS (1 ch, 6-bit) signal interface with a 20-pin connector and operates at a 60Hz frame rate. Powered by 3.3V, the backlight is 3 strings WLED, offering a 50,000-hour lifespan.

With an operating temperature range of -20°C to 70°C and storage range of -20°C to 80°C, it is suitable for various industrial environments.
