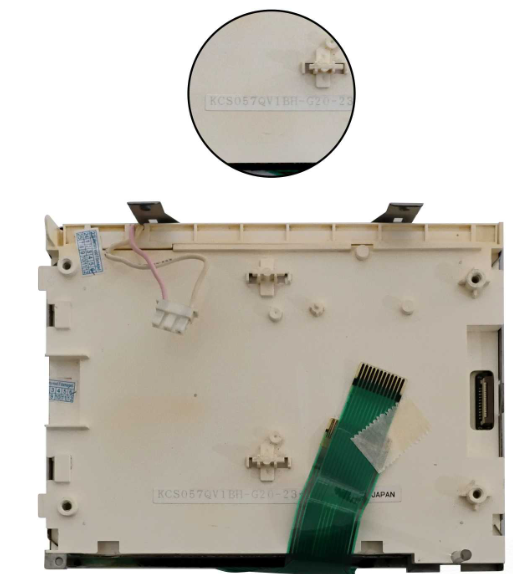

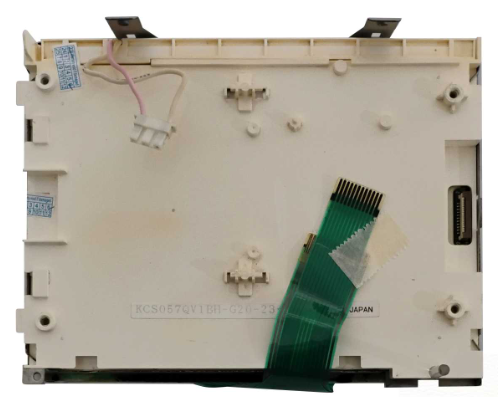

Kyocera KCS057QV1BH-G20 LCD DISPLAY with Touch Screen

The Kyocera KCS057QV1BH-G20 is a 5.7-inch CSTN (Color Super-Twisted Nematic) LCD module with an integrated touch screen, designed specifically for industrial and embedded system applications requiring high durability and clear visibility. It features a QVGA resolution of 320×240 pixels and a pixel density of 70 PPI, making it well-suited for compact yet information-rich user interfaces.

This panel operates in normally black, transmissive mode, enhancing the color performance over standard monochrome STN displays. Its contrast ratio of 40:1 and viewing angles of 50° (left/right) and 30° (up/down) make it ideal for fixed installations where a user will be viewing the display head-on or within a constrained viewing arc.

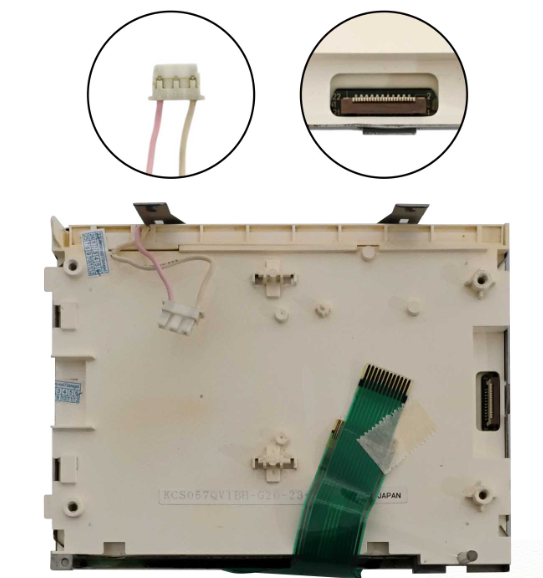

The display uses a parallel 1-channel 8-bit data interface via a 15-pin connector, simplifying integration with common industrial microcontrollers and display drivers. The CCFL backlight system provides sufficient luminance for indoor or controlled lighting environments and boasts a 40,000-hour lifespan, ensuring longevity in 24/7 operation scenarios.

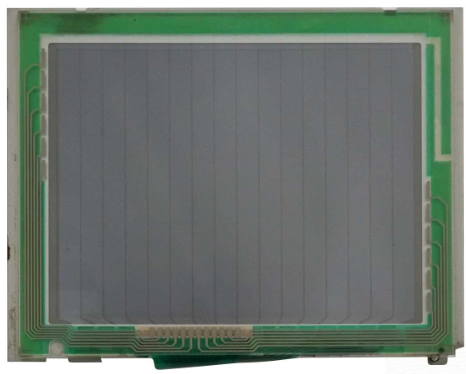

In addition, the integrated resistive touch panel allows for basic user interaction without the need for external input devices, making it suitable for HMI systems, diagnostic tools, and data entry terminals.
