Specifications:
Battery Type Supported:
Lithium-ion (Li-ion), LiPo (not for LiFePO4)Battery Configuration:
6S (6 cells in series)Nominal Voltage:
22.2V (based on 3.7V/cell), fully charged at 25.2VContinuous Discharge Current:
100AContinuous Charge Current:
Typically 50A–100A (varies by version, must confirm in datasheet)Overcharge Protection Voltage:
~4.25V ± 0.025V/cellOverdischarge Protection Voltage:
~2.8V ± 0.05V/cellBalance Function:
Passive balancing (usually 50–60 mA per cell) to equalize cell voltages during chargingBalance Voltage Threshold:
Starts balancing around 4.18V/cellTemperature Protection:
NTC sensor supported (usually 2 sensors: for charge and discharge protection)Short Circuit Protection:
Yes (typically reacts in microseconds)Overcurrent Protection:
Triggered when discharge current exceeds limit (~120A for a short time)Power Consumption:
Quiescent current: <50 μA
Balance current: ~50–60 mA
Communication Interface (optional on Smart version):
UART / RS485 / Bluetooth (for real-time monitoring via Daly app or PC tool)Wiring Type:

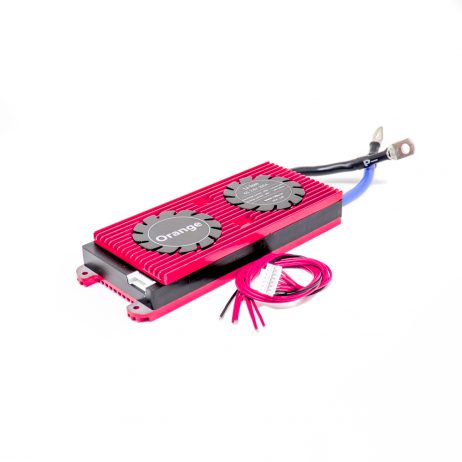

Comes with a 7-pin JST balance connector and screw terminals or solder pads for load and charger connections.
