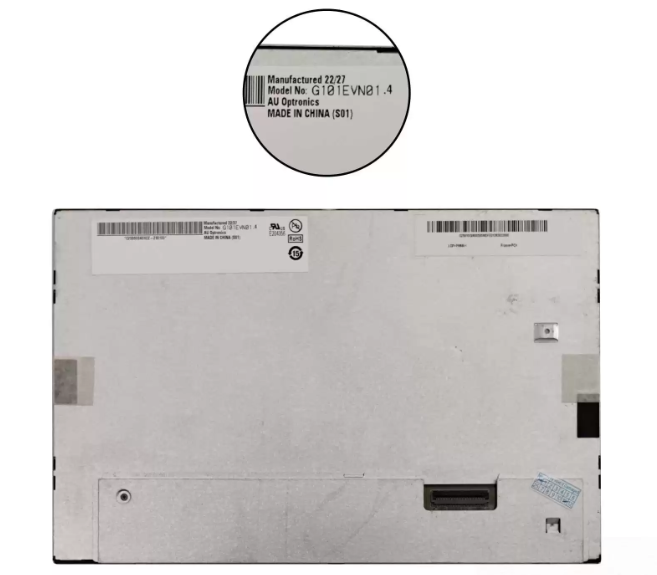

The AUO G101EVN01.4 LCD Module is 10.1-inch a-Si TFT-LCD panel offers a high-resolution display with 1280(RGB)×800 pixels (WXGA), resulting in a sharp 149 PPI for crisp image quality. Its active area measures 216.96(W)×135.6(H) mm, providing a broad and clear visual workspace.
A major highlight is its contrast ratio of 1300:1 (Typ.), ensuring deep blacks and vivid colors. Additionally, the wide viewing angles of 85°/85°/85°/85° (CR≥10) allow excellent visibility from all directions, making it ideal for professional and multimedia applications. The response time is 25 ms (Tr+Td), suitable for smooth transitions in dynamic content.
Supporting 262K/16.2M colors, it offers rich color reproduction. The panel uses an LVDS (1ch, 6/8-bit) 40-pin connector for efficient signal transmission. With a power supply of 3.3V (Typ.), it features a durable WLED backlight rated for 50K hours and comes with an integrated LED driver.
Designed for reliability, it operates in a temperature range of -20°C to 70°C and can be stored safely between -30°C to 80°C, making it versatile for various industrial and commercial uses.
Technical Precautions :-
It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.
Always turn off the power supply when you are inserting or disconnecting it from the input connector.
Wipe off water drop immediately as it may cause discoloration or spots.
Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
Do not try to open or modify the module assembly.
At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
Severe temperature condition may result in different luminance, response time.
