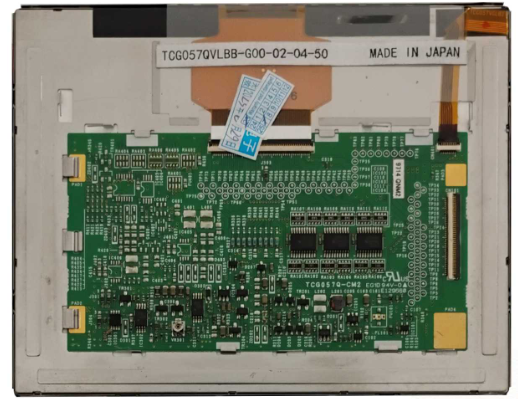

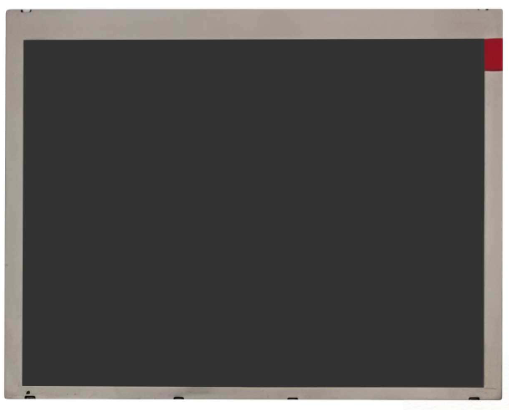

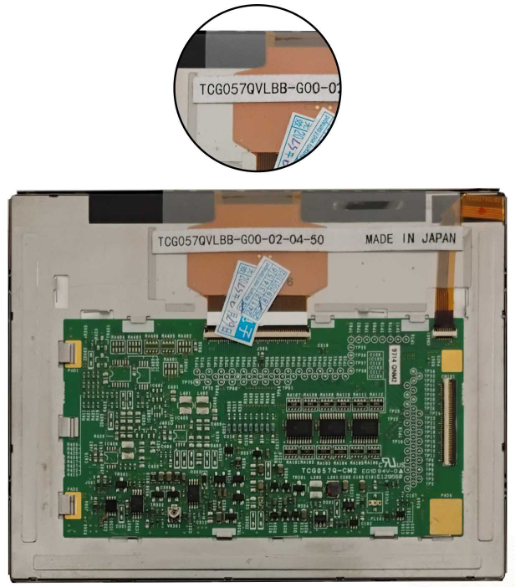

The Kyocera TCG057QVLBB-G00 is a 5.7-inch a-Si TFT-LCD panel tailored for industrial, commercial, and embedded applications requiring compact size, high durability, and vivid visual performance. Delivering a QVGA resolution of 320(RGB)×240 pixels with a pixel density of 70 PPI, this display module ensures clear image rendering suitable for HMI systems, control panels, instrumentation, and portable diagnostic equipment.
Built with TN technology, the module operates in a normally white, transmissive mode, providing enhanced brightness and consistent color output. The panel offers 240 cd/m² luminance and a 500:1 contrast ratio, delivering sharp visuals under moderate lighting conditions. With wide viewing angles of 80° in all directions (CR≥5), it guarantees good readability from various positions.
The active area of 115.2(W) × 86.4(H) mm ensures effective screen utilization, while its compact outer dimensions of 127.2(W) × 100.4(H) × 7.25(D) mm facilitate seamless integration into space-constrained systems. It supports 262K colors with 60% NTSC coverage, ensuring accurate and vivid color reproduction.
The display connects via a 40-pin interface, using 1-channel 6-bit Parallel RGB, and runs on a 3.3V power supply. The backlight system uses a 3-string White LED (WLED) array, offering a typical lifespan of 40,000 hours, supporting long-term industrial usage.
