LG.Philips LB121S1-A2 LCD display

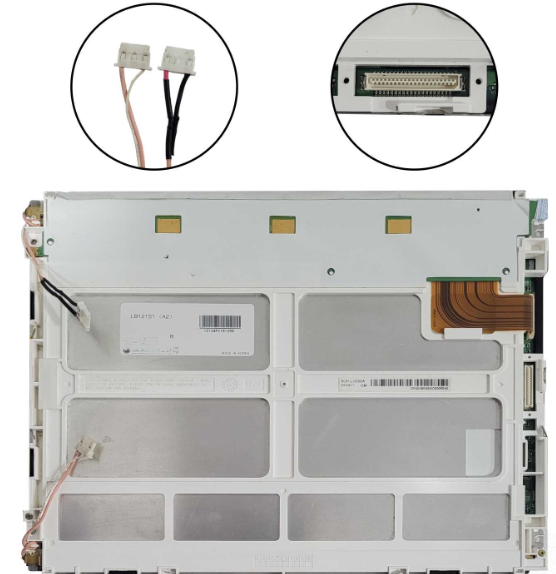

The LG.Philips LB121S1-A2 is a 12.1-inch a-Si TFT-LCD module, ideal for industrial applications that require consistent performance and durability. It features an SVGA resolution of 800×600 pixels (82 PPI) with an RGB vertical stripe pixel format, ensuring sharp and clear display output. The antiglare, hard-coated (3H) surface minimizes reflections and enhances readability in bright environments. With a brightness of 300 cd/m² and a contrast ratio of 200:1, this module delivers good visibility. The viewing angles of 60° left, 60° right, 40° up, and 55° down provide adequate visibility for various applications. It operates with a refresh rate of 60Hz, but also supports 120Hz and 240Hz with MEMC Circuit technology for enhanced motion clarity. The CCFL backlight (two pieces) with a lifespan of 50,000 hours ensures long-lasting illumination, though a driver is not included. The module uses a Parallel RGB (1 ch, 6-bit) interface with a 41-pin connector, making it easy to integrate into existing systems. Designed for industrial environments, it operates at 0°C to 50°C and can be stored between -20°C to 60°C. This module does not include a touch screen, allowing for external customization.
