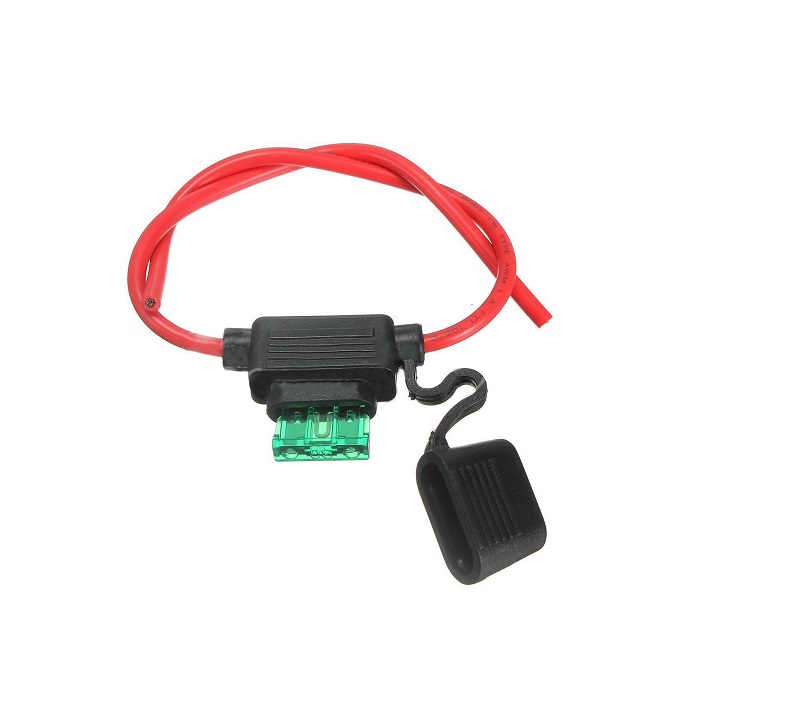

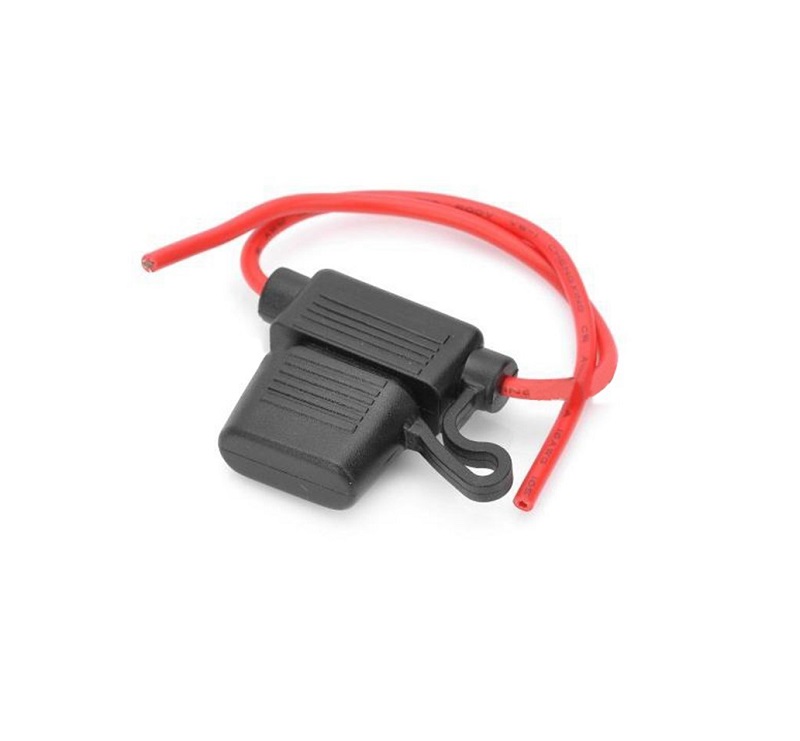

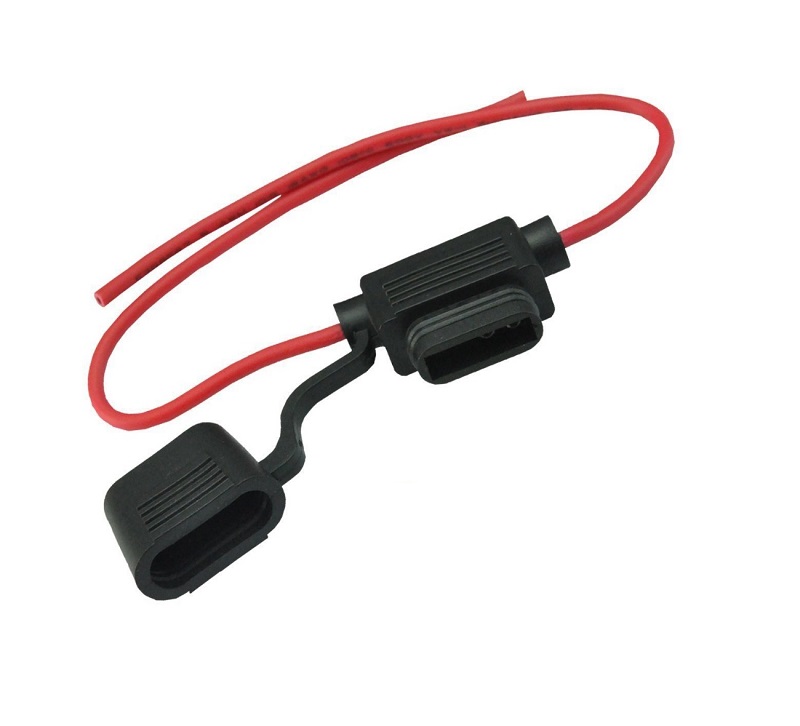

12AWG 30A Copper Wire Waterproof In Line Blade Fuse Holder

These Car Fuse with Holder incorporate two individual receptacle terminals made from brass with a Tin over Nickel-plated finish that is pre-assembled to a UL rated 94V-0 glass-filled nylon base. The Mini Blade Fuse holder is suitable for 30 Ampere applications. The Standard Blade Fuse holder is suitable for 40 Ampere applications. The Maxi Blade Fuse holder is suitable for 60 Ampere applications and all will withstand shock and vibration. Featured by Sharvi Electronics Receptacle contacts hold the fuse securely, assuring positive connections and low contact resistance. Pre-assembled fuse holders to accommodate mini, standard, and maxi blade fuse sizes. Sharvielectronics Tags, Car Blade Fuse holder, Car Blade Fuse, 30A Car Blade Fuse, 12AWG 50A Car Blade Fuse.

P.C BOARD Quick Insert Terminal Type:

• WGP21, WGP22,WGP23,WGP24,WGP25,WGP26,WGP27,WGP28,WGS01,WGS02

Features/Specs:

• Connector Name: 12AWG Wire With Fuse Holder

• Terminal material: Brass Tin Plated

• Rated Current: 30A

• Cable Size: 12 AWG

• Voltage Drop: 20mV Max

• Cable Length: 150 mm

• Weight: 35 gm

Application:

• Fuseholder for 42V PowerNet with coding for TAC fuses-links. Attachable in X – direction. Rated voltage 58V; crimp terminals

• Fuseholder for ATO / FKS size fuses-links. Attachable in X – direction. Rated voltage 80V; crimp terminals.

• Fuseholder for ATO / FKS size fuses-links. 90° bent solder-able tin-plated contacts. Rated voltage 80V.

Package Include:

• 1 x 12AWG 30A Copper Wire Waterproof In Line Blade Fuse Holder

Note: Product Images are shown for illustrative purposes only and may differ from the actual product.
