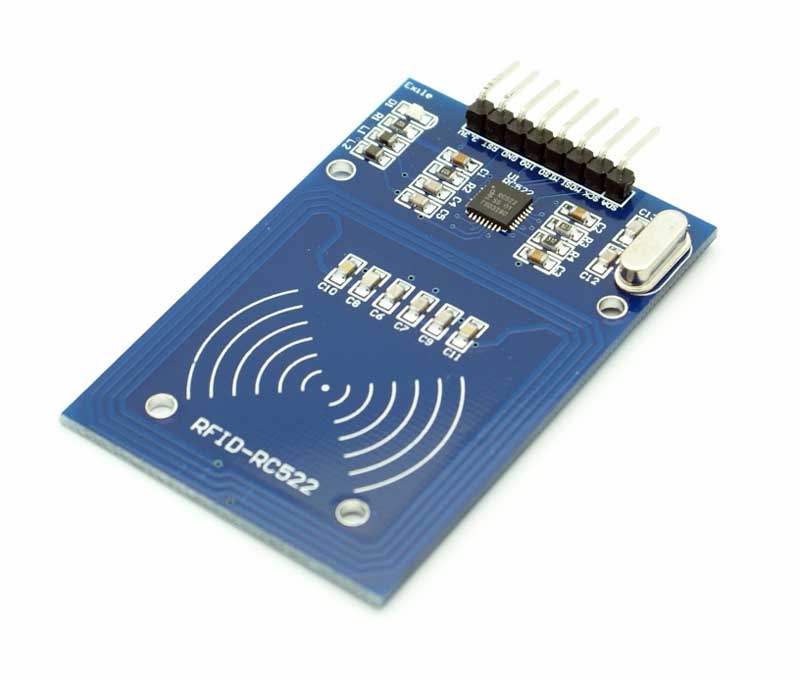

The RC522 RFID module is a 13.56 MHz RFID reader/writer based on the MFRC522 IC from NXP. It uses the SPI protocol for communication and is commonly used in contactless communication applications. The module includes one RFID card and one key fob tag compliant with the ISO/IEC 14443 Type A standard. It's ideal for access control systems, attendance tracking, and embedded projects using microcontrollers like Arduino, ESP32, and Raspberry Pi.
Features
Operates at 13.56 MHz frequency
Based on MFRC522 IC from NXP
Supports ISO/IEC 14443 Type A protocol
SPI communication interface (also supports I²C and UART modes)
Supports MIFARE 1K and 4K cards, S50 and S70 cards
Onboard antenna with communication range of up to 5 cm
Low power consumption, suitable for portable devices
Compact PCB module for easy integration

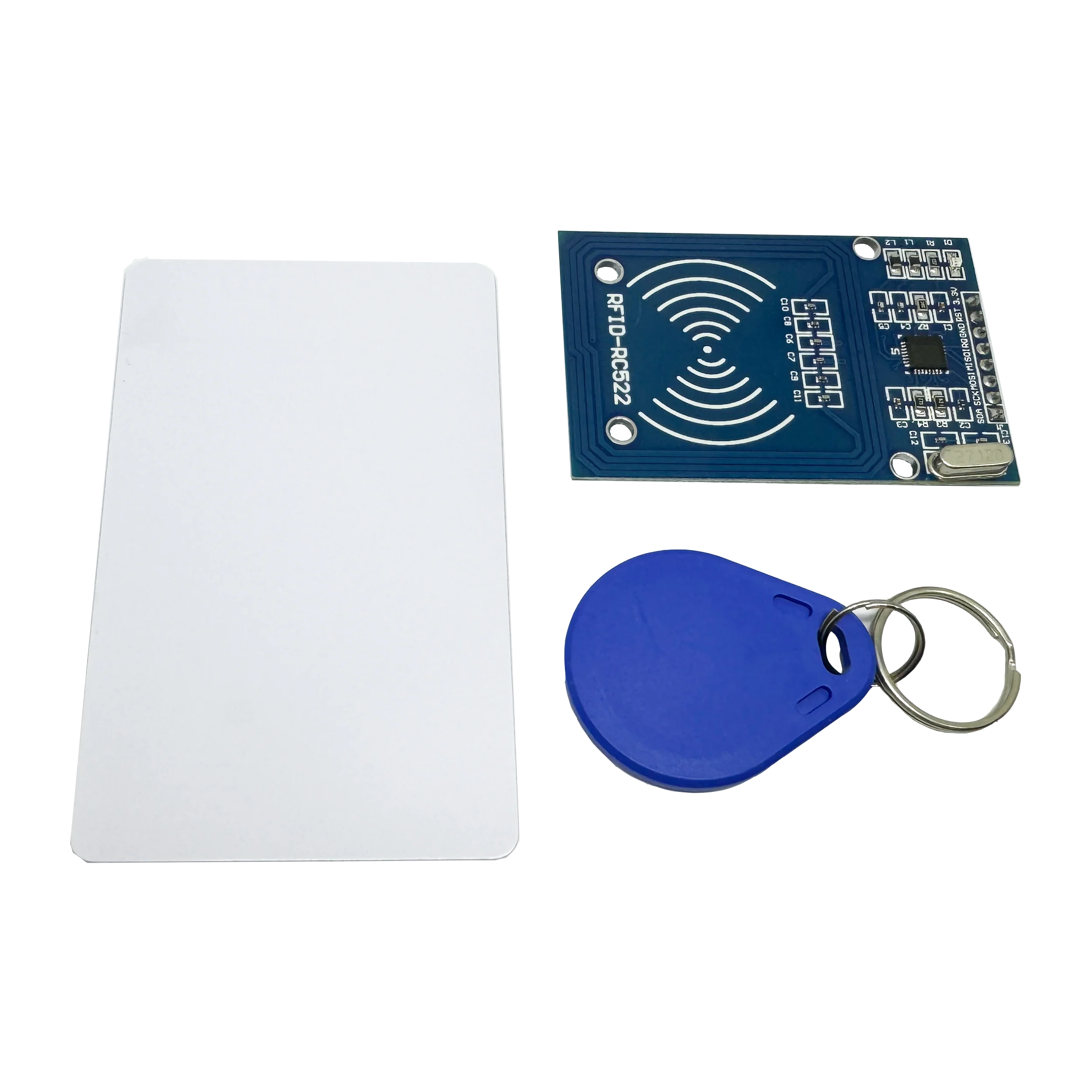

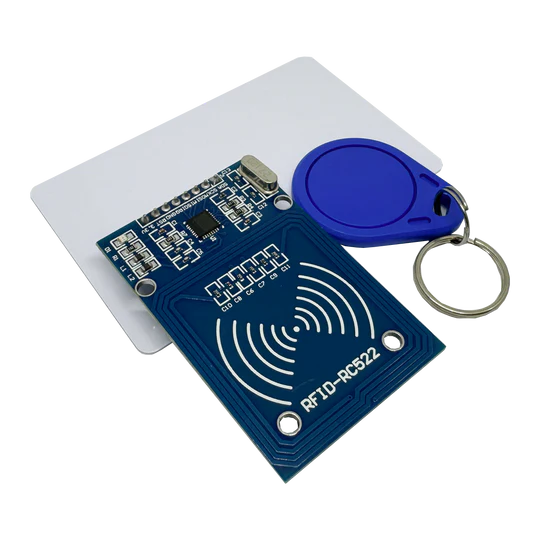

Includes one S50 RFID card and one RFID key fob tag
Compatible with popular microcontrollers and development platforms
