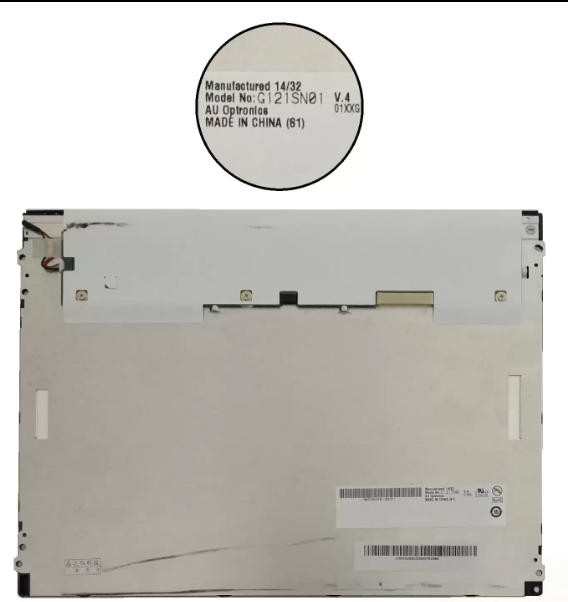

The AUO G121SN01-V.4 LCD Module is a 12.1-inch TFT-LCD panel offers a practical SVGA resolution of 800×600 at 82 PPI, making it well-suited for industrial, medical, and embedded systems requiring clear and consistent visuals. With a generous active area of 246×184.5 mm, it ensures ample space for data display or user interfaces.
Moreover, the panel delivers a high luminance of 450 cd/m², paired with a 700:1 contrast ratio, which enables bright and sharp image reproduction even in ambient light environments. The wide viewing angles (80/80/65/75, CR≥10) enhance usability in multi-angle installations or collaborative applications.
In addition, the TN, Normally White, Transmissive operating mode ensures energy efficiency and faster refresh rates, with a response time of 25 ms (Tr) and 10 ms (Td), balancing performance between static and dynamic content. Supporting 262K and 16.2M colors, and covering 55% of the NTSC color gamut, it provides decent color depth for its intended applications.
The display integrates seamlessly via a 20-pin LVDS interface, operating at a typical 3.3V. The backlight system uses a 9S2P WLED configuration, rated for 50,000 hours, and comes with an integrated LED driver, simplifying design and maintenance.
Technical Precautions :-
It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
Always turn off the power supply when you are inserting or disconnecting it from the input connector.
Wipe off water drop immediately as it may cause discoloration or spots.
Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
Do not try to open or modify the module assembly.
At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
Severe temperature condition may result in different luminance, response time.
