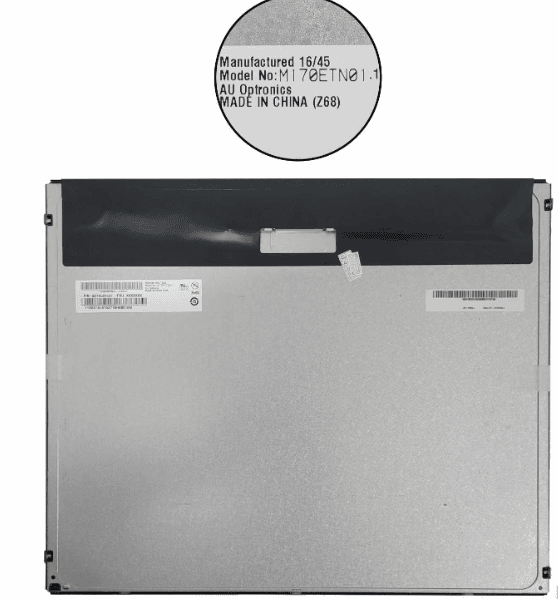

AUO M170ETN01.1 LCD DISPLAY

The AUO M170ETN01.1 is a high-performance 17.0-inch LCD module designed for industrial and commercial applications. With a 1280×1024 SXGA resolution, this a-Si TFT-LCD panel delivers crisp and detailed visuals, making it ideal for applications requiring high clarity and reliability. Its 337.92 × 270.336 mm active area ensures an immersive display experience with excellent image reproduction.

Equipped with a contrast ratio of 1000:1 and 250 cd/m² brightness, this LCD panel offers vibrant colors and sharp contrasts for superior visibility. The 85° wide viewing angles ensure clear display quality from different perspectives, making it suitable for medical displays, industrial control systems, and professional monitors. The 3.8 ms response time enhances motion clarity and reduces blurring in dynamic content.

This LVDS 2-channel, 8-bit interface display supports 16.7M colors with a 72% NTSC color gamut, ensuring precise color accuracy. Its WLED backlight has a lifespan of 30,000 hours, providing long-term performance without frequent replacements. With antiglare hard coating (3H) treatment, the screen minimizes reflections for comfortable viewing. The robust design and wide operating temperature range (0°C to 50°C) make it a reliable choice for industrial and commercial applications.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
