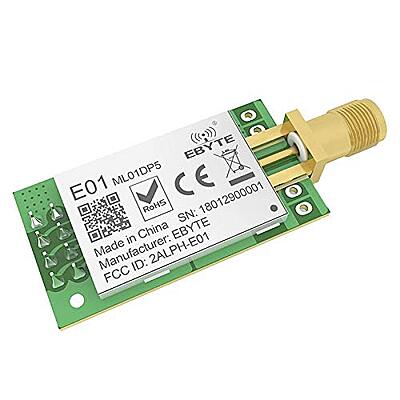

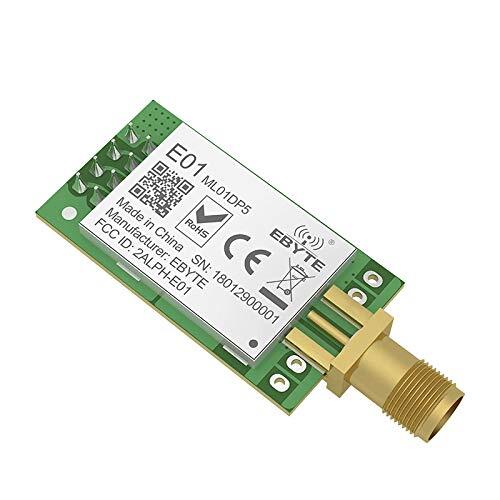

Ebyte E01-ML01DP5 2.4GHz nRF24L01 PA LNA Wireless Transceiver RF Module E01-ML01DP5 is a DIP module based on original imported nRF24L01P form Nordic in Norway, operates at 2.4Ghz with 100mW transmitting power. The RF performance of E01-ML01DP5 and components selection during R&D are all in accordance with industrial grade standards, using industrial-grade high-precision 16MHz crystal oscillator, also it obtained FCC, CE and RoHS certification. A power amplifier (PA) and a low noise amplifier (LNA) are built in, so that the maximum transmit power reaches 100mW and the receiving sensitivityis furtherimproved. The products have been greatly improved when there is no PA and LNA in design. The user needs to use the MCU driver or use a dedicated SPI debugging tool to develop E01-ML01DP5.
Features: Based on nRF24L01+ chip Long-distance communication (up to 1100 meters in open field) Enhanced with PA + LNA for high transmission power and sensitivity SPI interface for easy microcontroller integration (Arduino, STM32, ESP32, etc.)
