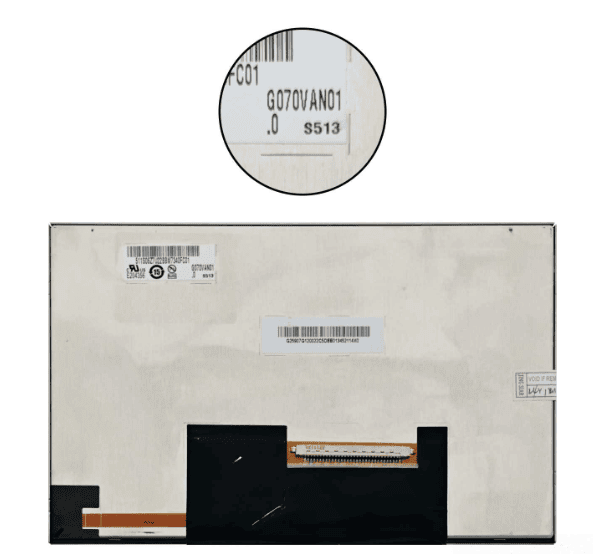

AUO G070VAN01.0 LCD DISPLAY

Specification:

1. Display Size: 7.0 inches (17.78 cm) diagonal

2. Resolution: 800 × 480 pixels (WVGA)

3. Aspect Ratio: 15:9

4. Display Type: a-Si TFT-LCD, transmissive mode

5. Color Depth: 262K or 16.7M colors (6-bit + FRC)

6. Pixel Pitch: ~0.1905 × 0.1905 mm

7. Brightness: ~1000 cd/m² (typical – high brightness variant)

8. Contrast Ratio: ~800:1 (typical)

9. Viewing Angle: 170° horizontal / 170° vertical (typical)

10. Response Time: ~25 ms

11. Backlight: White LED, edge-lit

12. Backlight Lifetime: ~50,000 hours

13. Interface: LVDS (1 channel, 6/8-bit selectable)

14. Surface Treatment: Anti-glare, hard coating (3H)

15. Operating Temperature: -30°C to +85°C

16. Storage Temperature: -40°C to +90°C
