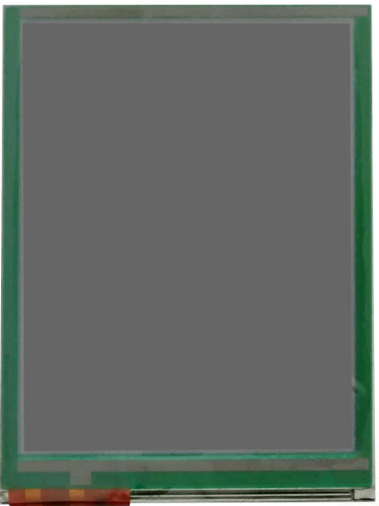

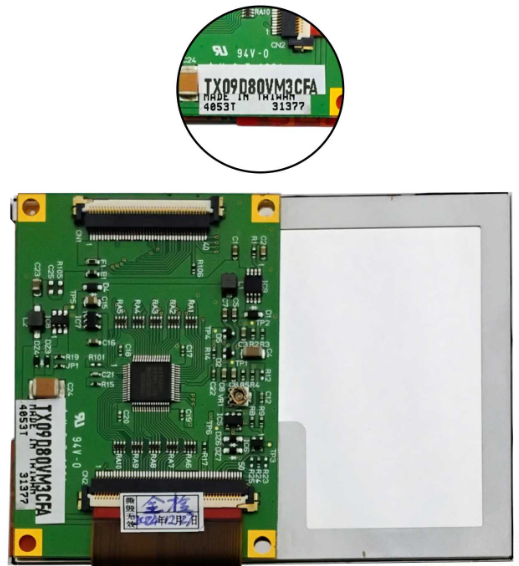

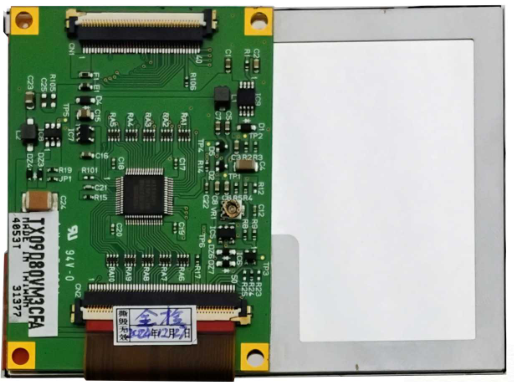

Hitachi TX09D80VM3CFA LCD DISPLAY with Touch

The Hitachi TX09D80VM3CFA is a rugged 3.5-inch TFT LCD module with integrated 4-wire resistive touchscreen, engineered for high-reliability applications in industrial, medical, and embedded systems. Featuring QVGA (240×320) resolution, compact construction, and a bright white LED backlight, it delivers excellent visual clarity and dependable touch performance in space-constrained and demanding environments.

Mechanical Specifications:

• Module Dimensions: Approx. 76.9 mm (W) × 63.9 mm (H) × ~4.3 mm (D)

• Active Area: 53.64 mm (W) × 71.52 mm (H)

• Weight: ~60 grams

• Mounting: Rear or bracket mount with compact footprint

Environmental & Electrical Characteristics:

• Operating Temperature Range: –20 °C to +70 °C

• Storage Temperature Range: –30 °C to +80 °C

• Supply Voltage (Logic): 3.3 V (typical)

• Touchscreen Durability: >1 million actuations

• Power Consumption: Low; suitable for battery-powered systems

Applications:

• Handheld industrial control terminals

• Medical devices and diagnostics equipment

• Portable instrumentation

• HMI panels in embedded systems

• Marine and outdoor control panels
