Specification:

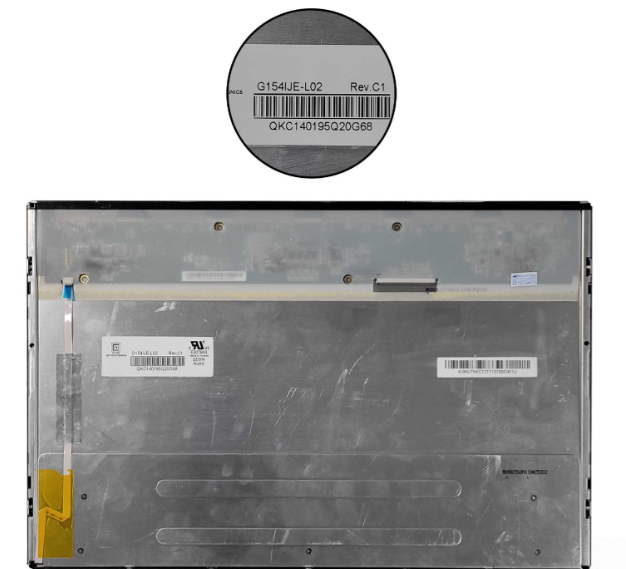

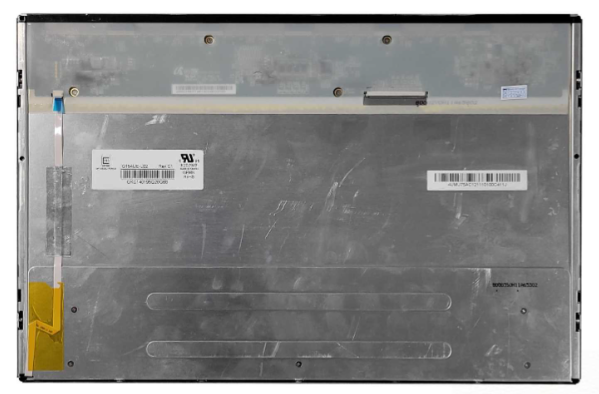

Model: G154IJE‑L02
Display Size: 15.4 inches (diagonal)
Resolution: WXGA+ (1440 × 900 pixels)
Aspect Ratio: 16:10
Pixel Pitch: ~0.197 mm × 0.197 mm
Display Mode: Normally White, Transmissive
Color Depth: 262K or 16.7M (6-bit + FRC)
Brightness: ~400–500 cd/m² (typical)
Contrast Ratio: ~700:1 (typical)
Viewing Angle: ~80°/80°/60°/80° (Left/Right/Up/Down, CR≥10)
Surface Treatment: Anti-Glare (Haze 25%), Hard coating (3H)
Backlight: White LED (edge-lit)
Backlight Life: ~50,000 hours (typical)
Interface: LVDS (1 channel, 6/8-bit)
