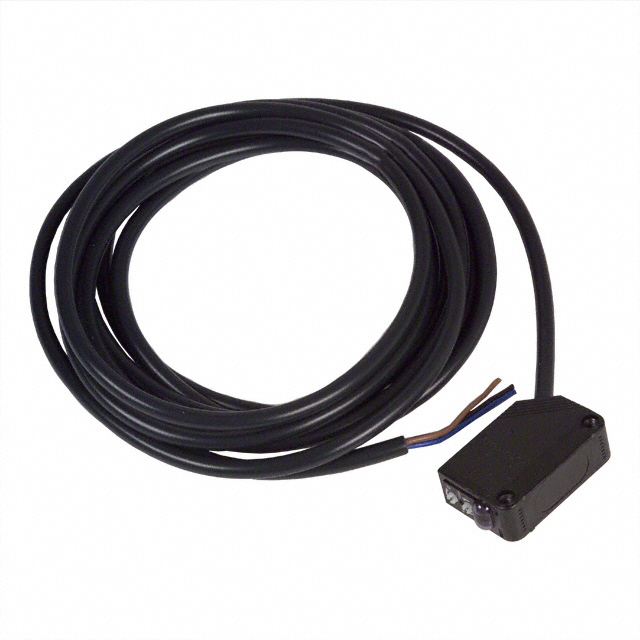

E3Z-D62 Models Omron Automation and Safety

Specifications:

1. Sensing Method: Diffuse-reflective

2. Sensing Distance: 1 meter (for white paper 300 x 300 mm)

3. Light Source: Infrared LED (860 nm)

4. Output Configuration: NPN open collector

5. Operation Mode: Light-ON/Dark-ON selectable

6. Response Time: 1 ms maximum

7. Power Supply Voltage: 12 to 24 VDC ±10% ripple (p-p) 10% max

8. Current Consumption: 30 mA max

9. Output Load Voltage: 26.4 VDC max

10. Output Load Current: 100 mA max

11. Residual Voltage: 1 V max (load current less than 10 mA), 2 V max (load current 10 to 100 mA)

12. Ambient Temperature Range (Operating): -25°C to 55°C (with no icing)

13. Ambient Temperature Range (Storage): -40°C to 70°C (with no freezing or condensation)

14. Ingress Protection: IP67

15. Housing Material: PBT (Polybutylene Terephthalate)
