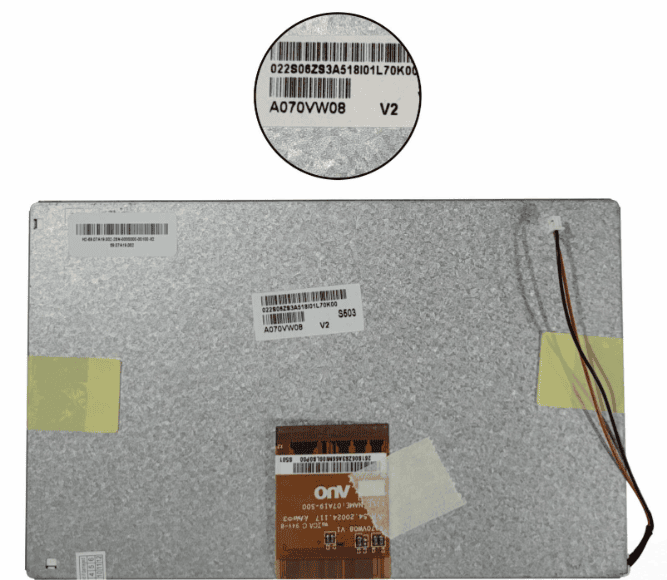

AUO A070VW08-V.2 LCD DISPLAY

It delivers 500 cd/m² typical luminance and a 500:1 contrast ratio, ensuring clear, vibrant visuals under varied ambient light. The panel maintains good legibility across angles (65/65/50/60°, CR≥10) and offers a 12/18 ms response time, supporting smooth interaction and video playback.

Built on TN technology in a normally white, transmissive configuration, it features antiglare treatment and a durable 3H hard coating to reduce reflections and enhance surface resilience. With 16.7 million colors and 50% NTSC gamut coverage, it achieves balanced, vivid color performance.

The display connects via a 60-pin FPC using a TTL (8-bit) + SPI interface, enabling broad compatibility with a wide range of embedded systems. Operating at a standard 60Hz refresh rate, it accepts a comprehensive power input (3.3/5/-5/14/-14V) suitable for complex hardware designs.

Moreover, a 3S11P WLED backlight—rated for 10,000 hours—delivers consistent illumination; however, it comes without a built-in driver, which may require additional integration considerations. Designed for rugged use, the display operates reliably from -30°C to 80°C, with storage tolerance from -20°C to 70°C, making it a solid choice for industrial and semi-outdoor applications.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don’t scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
