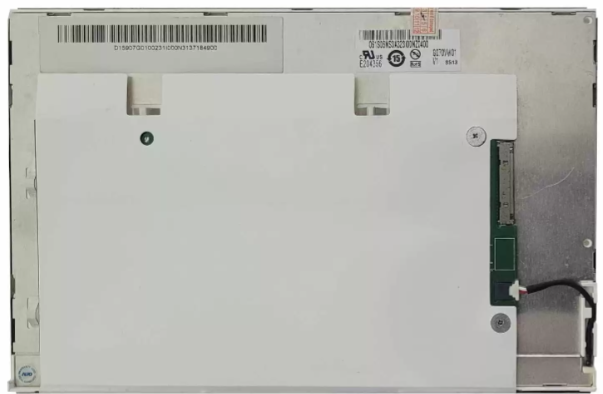

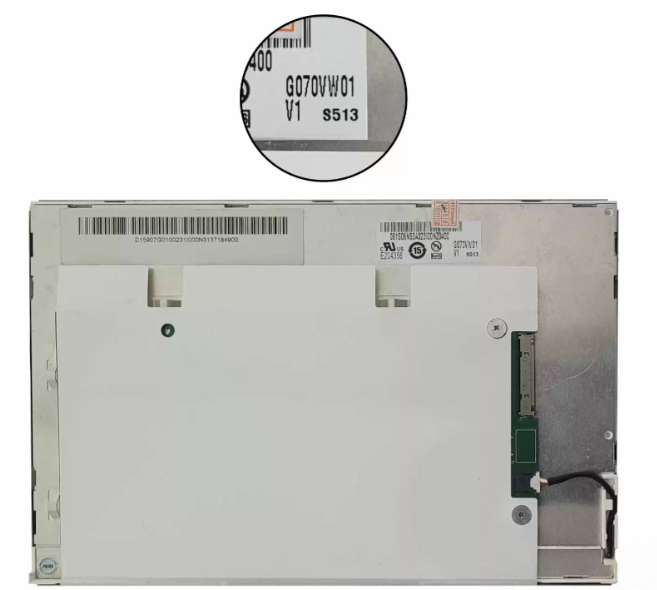

AUO G070VW01-V.1 LCD DISPLAY

The AUO G070VW01-V1 (G070VW01V1) is one of the most popular LCD Module which is mainly used in industrial and medical applications.

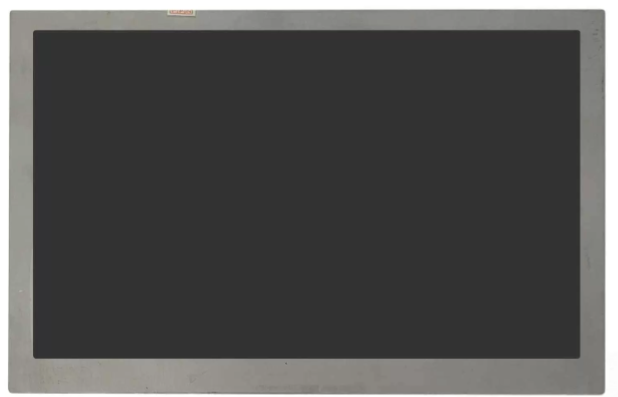

It is a 7.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral WLED backlight system, With LED Driver , without touch screen.

It's resolution 800(RGB)×480, WVGA 133PPI and contrast ratio 500 : 1 (Typ.) (TM). It features an operating temperature range of -20 ~ 70°C, a storage temperature range of -20 ~ 70°C, and the maximal vibration level of 1.5G (14.7 m/s²). Our engineers has entered all the specification details about this LCD screen according to the datasheet. Although errors may occur during this process.

When it comes to viewing flexibility, the display supports angles of 65/65/50/60 degrees (CR≥10), which are adequate for head-on and slightly off-center viewing. The response time of 12/18 ms (Tr/Td), while not the fastest, still supports smooth transitions for general use. Moreover, its antiglare surface and 3H hard coating improve durability and reduce reflections, enhancing usability in various lighting environments.

Technical Precautions :-

• It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.

• Always turn off the power supply when you are inserting or disconnecting it from the input connector.

• Wipe off water drop immediately as it may cause discoloration or spots.

• Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.

• Do not try to open or modify the module assembly.

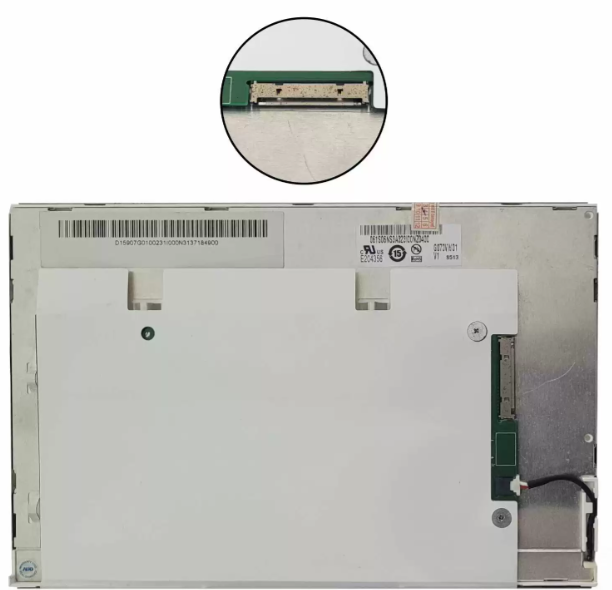

• At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.

• Severe temperature condition may result in different luminance, response time.
