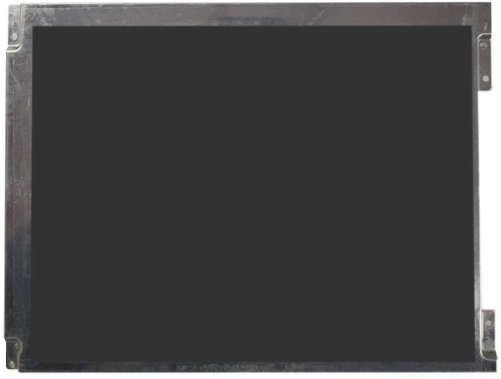

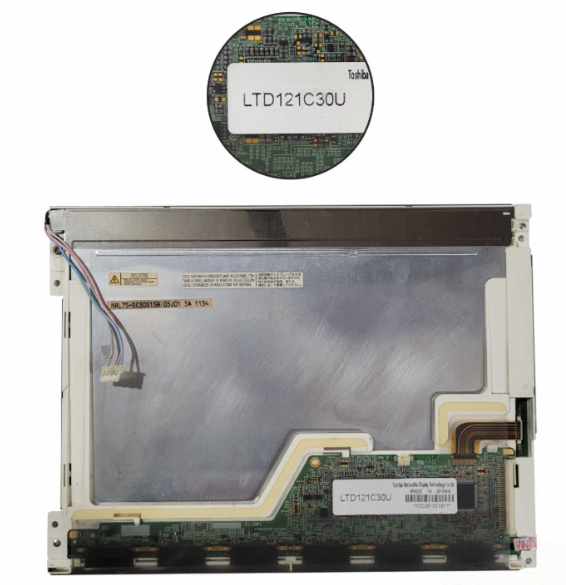

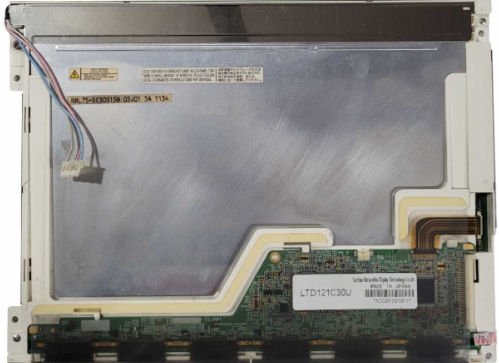

Toshiba LTD121C30U LCD display

The Toshiba LTD121C30U LCD Module (LTD-121C30U) is a 12.1-inch LCD module that offers a reliable and effective display solution for a wide range of industrial and embedded applications. With a resolution of 800(RGB)×600 (SVGA) and a pixel density of 82 PPI, it delivers clear and legible visuals, ideal for graphical interfaces and monitoring systems.

The active display area of 246 mm × 184.5 mm ensures a comfortable viewing window, while its a-Si TFT-LCD panel technology provides consistent image quality. Engineered with TN (Twisted Nematic) mode, the module operates in a normally white, transmissive configuration, offering standard performance suited for applications with direct viewing.

The display supports 262K colors, delivering vibrant imagery suitable for monochrome and semi-graphic needs. A 500:1 contrast ratio enhances readability in various lighting conditions, although the luminance and viewing angle details are unspecified.

For connectivity, the module uses a CMOS (1 channel, 6-bit) interface, making it compatible with many embedded platforms and controllers. CCFL backlighting is implemented, ensuring uniform brightness across the panel, though it may require an inverter circuit for power management.

Ideal for environments where reliability is key, this LCD module fits well into control panels, diagnostic machines, and legacy systems. While compact in form, its performance and compatibility make it a dependable choice for professional-grade electronics.
