Tianma TM104SDH01 LCD display

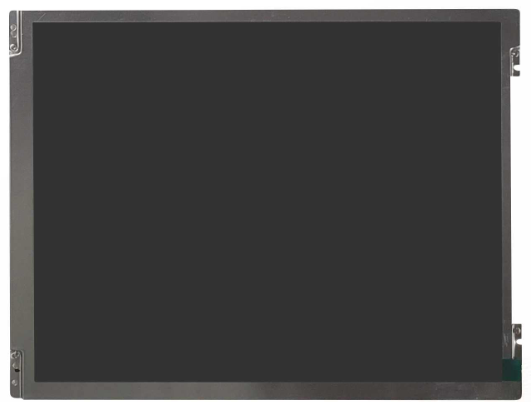

The Tianma TM104SDH01 LCD Module is a 10.4″ TFT-LCD offering an SVGA resolution of 800×600, achieving a pixel density of 96 PPI across its 211.2×158.4 mm active area. It provides a clear and readable display suitable for a wide range of industrial and embedded applications.

Equipped with a brightness of 400 cd/m² and a contrast ratio of 400:1, the screen ensures decent visibility under various lighting conditions. Its TN panel, operating in Normally White, Transmissive mode, delivers quick responsiveness—10/15 ms (Tr/Td)—and solid viewing angles of 70°/70°/60°/70°.

To enhance durability and clarity, the panel features antiglare treatment with a 3H hard coating. It supports 262K colors at 50% NTSC, offering reliable color reproduction for standard UI and content.

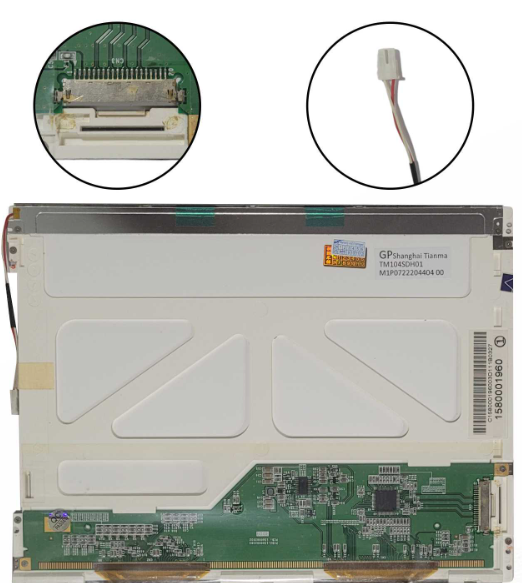

Connectivity-wise, the module includes a 20-pin LVDS interface and operates at a typical voltage of 3.3V. Additionally, it utilizes a 6S6P WLED backlight rated for 30,000 hours, though it does not include an integrated driver.

Lastly, its wide temperature ranges—from -20°C to 70°C during operation and -30°C to 80°C in storage—ensure robust performance in demanding environments.
