Flash Storage: 16MB NOR Flash (expandable depending on version)
Viewing Angle: 70°/70°/50°/70° (L/R/U/D)
Backlight Type: LED
Brightness: 250–300 cd/m² (typical)
Dimensions: ~121.0 mm × 73.0 mm × 15.0 mm
Operating Temperature: -20°C to +70°C
Weight: ~120 grams
Non-returnable
₹1,500.00 ₹2,000.00
Available Offer
Share :
Product Details

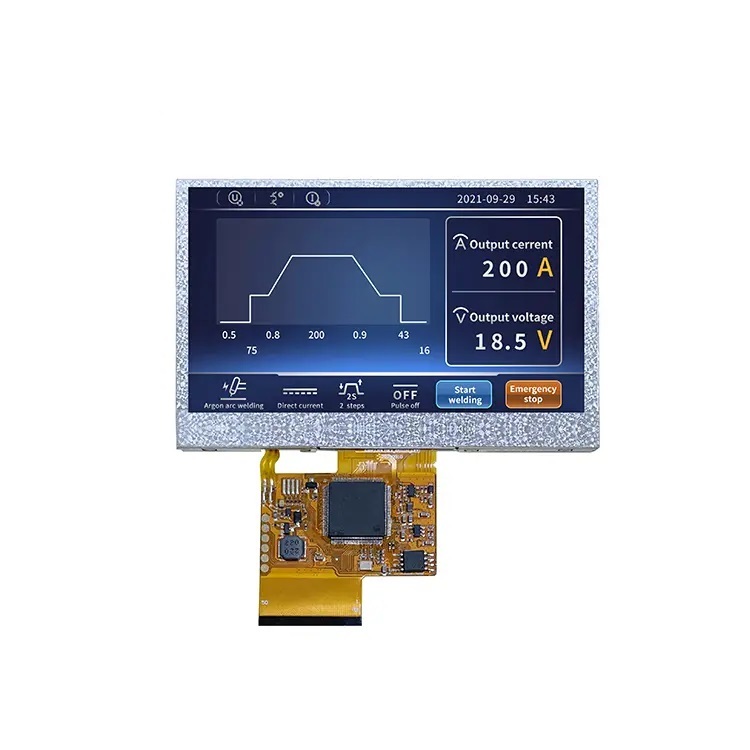

The DMG48270F043_01WN is a 4.3-inch Human Machine Interface (HMI) touch display module manufactured by DWIN Technology. It is based on the DGUS II system, designed for use in embedded systems, automation equipment, and user-interface applications. This module provides a cost-effective and visually appealing touchscreen solution with UART interface for easy integration into microcontroller and industrial environments.
Features:
4.3-inch TFT LCD with resistive touch panel
WQVGA resolution (480×272 pixels)
Supports DWIN’s DGUS II development system
UART serial interface (TTL level) for easy MCU integration
Built-in flash memory for GUI storage and fonts
Wide voltage input (5V typical)
Supports image, text, chart, and button display
Easy GUI development with DWIN DGUS tool
Reliable performance in industrial and commercial applications
