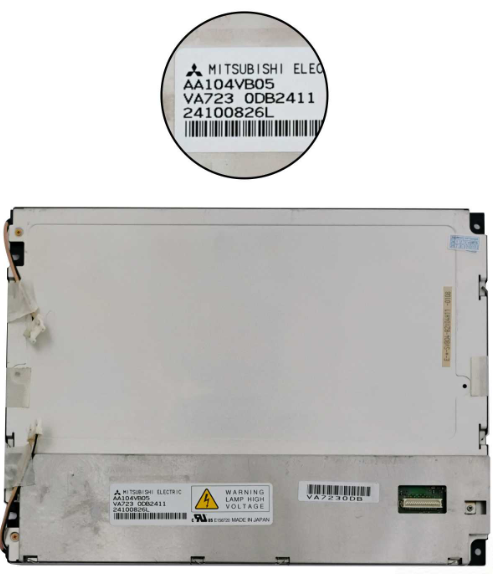

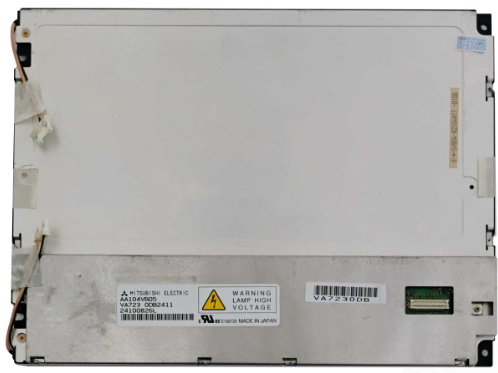

Mitsubishi AA104VB05 LCD display

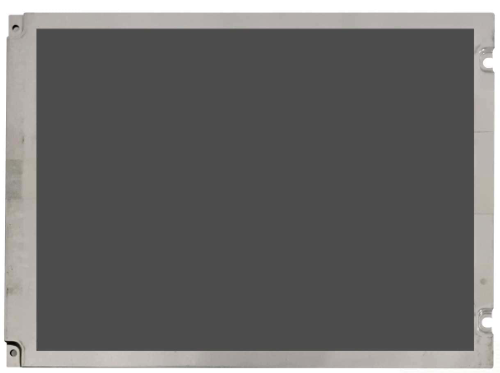

The Mitsubishi AA104VB05 LCD Module is a 10.4-inch a-Si TFT-LCD panel that offers reliable performance for industrial and commercial environments. It features a 640(RGB)×480 VGA resolution with a 76 PPI pixel density, ensuring clear and sharp visuals. The active area measures 211.2(W)×158.4(H) mm, while the overall dimensions are 243(W)×181.6(H)×12.7(D) mm.

Delivering a luminance of 380 cd/m² and a contrast ratio of 300:1 (typical), this panel ensures visibility across a range of lighting conditions. Its viewing angles of 60/60/55/45 degrees (CR≥10) and response time of 15/35 ms (Tr/Td) make it suitable for various display applications.

Utilizing TN technology, the display operates in a normally white, transmissive mode, enhanced by an antiglare, hard coating (3H) surface. It supports 262K colors covering 35% NTSC.

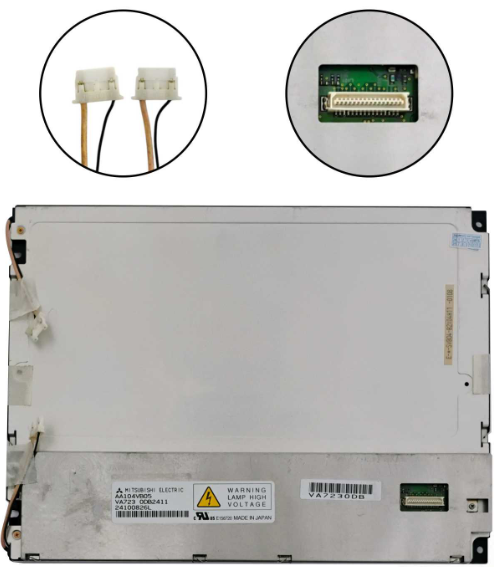

The panel connects via a CMOS (1 ch, 6-bit) interface with a 31-pin connector and operates at 3.3/5.0V power input. The dual CCFL backlight offers 50,000 hours of lifetime, though without a built-in driver, and supports temperatures from 0°C to 50°C.
