Engineered with a-Si TFT-LCD technology, the display operates in TN mode with a normally white, transmissive configuration. It supports up to 16.2 million colors and covers 50% of the NTSC color gamut, producing vivid and accurate visuals. An antiglare finish and hard coating (3H) enhance visibility while protecting against surface damage.
Typical brightness is rated at 230 cd/m² with a contrast ratio of 500:1, offering balanced performance in varied lighting conditions. Wide viewing angles of 80° horizontally and 60°/70° vertically (CR≥10) ensure consistent image quality from multiple perspectives.
Fast response times—10 ms rise and 5 ms fall—enable smooth visual transitions. The panel runs at a 60Hz refresh rate and connects via a 20-pin LVDS interface (1-channel, 6/8-bit). A 3-string WLED backlight system, with integrated LED driver and 25,000-hour lifespan, provides long-term illumination.

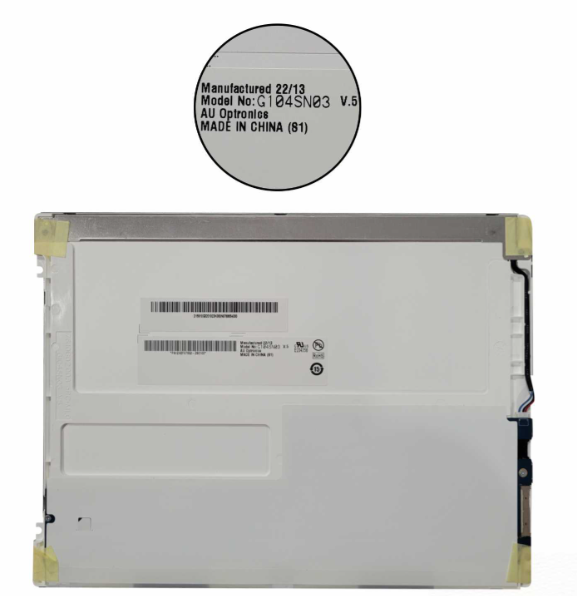

Designed to operate in temperatures from -20°C to 70°C and withstand storage down to -25°C, this display offers robust, all-around performance for demanding environments. The AUO G104SN03-V.5 LCD Module (G104SN03V0) is 10.4-inch TFT-LCD panel combines clarity, efficiency, and durability—making it a reliable choice for industrial and embedded applications. Featuring an SVGA resolution of 800(RGB)×600 pixels and a pixel density of 96 PPI, it delivers sharp, legible visuals across its 211.2 mm × 158.4 mm active area. The slim 236 mm × 176.9 mm × 6 mm footprint allows seamless integration into compact systems.
Technical Precautions :-
It is a front polarizer. It may damaged. Please be cautious. Don't scratch it.
Always turn off the power supply when you are inserting or disconnecting it from the input connector.
Wipe off water drop immediately as it may cause discoloration or spots.
Please handle with great care. It may broken or cracked if dropped or bumped on hard surface.
Do not try to open or modify the module assembly.
At the insertion or removal of the Signal Interface Connector do not rotate or tilt the Interface Connector of the TFT Module. It may damage the panel.
Severe temperature condition may result in different luminance, response time.
