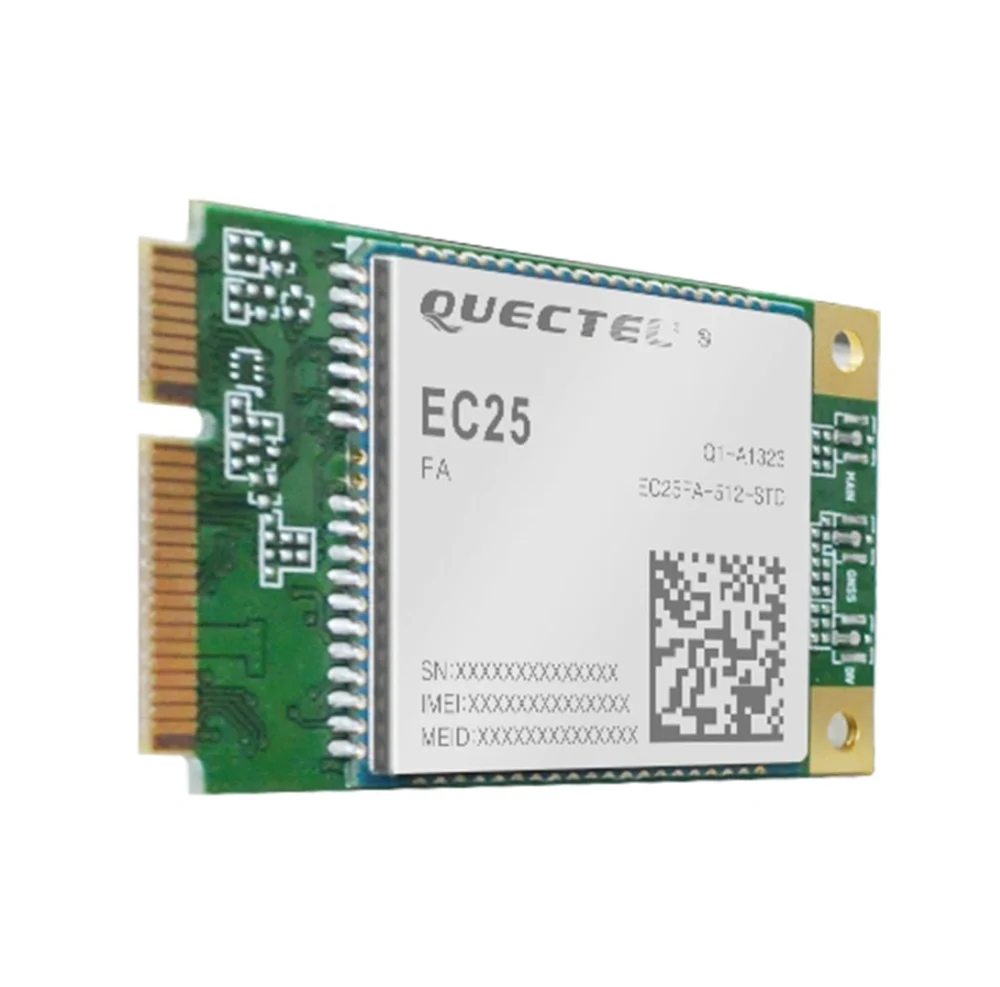

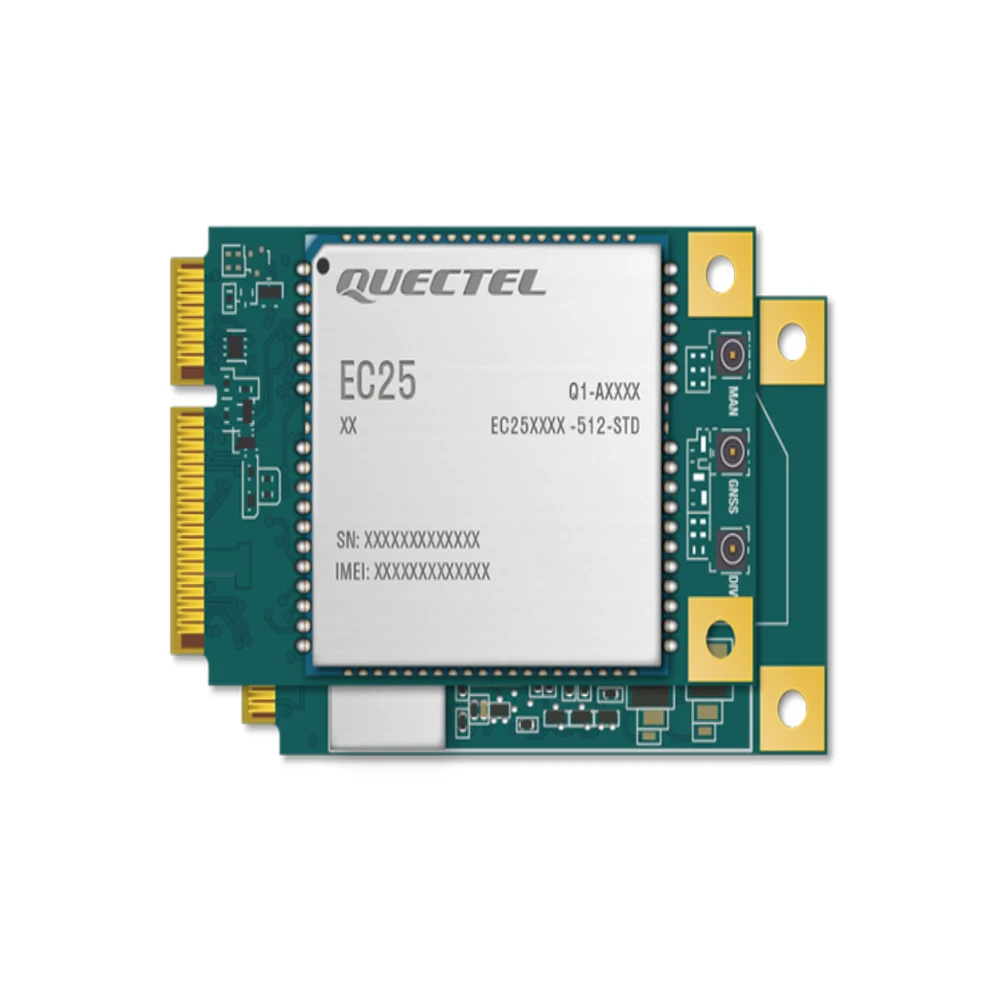

LTE EC25 Mini PCIe series

The EC25 Mini PCIe Series is a compact 4G LTE cellular module from Quectel, designed in a standard Mini PCI Express form factor for seamless integration into industrial and commercial applications. Based on Qualcomm's MDM9x07 chipset, the EC25 delivers robust LTE Cat 4 connectivity with downlink speeds up to 150 Mbps and uplink up to 50 Mbps. It supports global LTE bands and offers fallback to WCDMA and GSM networks, ensuring reliable communication in a variety of deployment environments. Equipped with GNSS (GPS, GLONASS, BeiDou, Galileo) and featuring multiple interfaces like USB 2.0, UART, and PCM, the EC25 is ideal for M2M, IoT, automotive, POS, and industrial routers.

• LTE Category 4 module with global/regional variant support
• Downlink speeds up to 150 Mbps, uplink up to 50 Mbps
• Standard Mini PCIe form factor for easy integration
• Supports LTE, WCDMA/HSPA+, and GSM/EDGE fallback
• Integrated GNSS receiver: GPS, GLONASS, BeiDou, Galileo
• USB 2.0 high-speed interface for host communication
• Supports TCP/IP, PPP, FTP, HTTP, and SSL protocols
• Low power consumption in idle and sleep modes
• Extended temperature range suitable for industrial use
• Certifications: CE, GCF, FCC, PTCRB, CCC, RoHS
