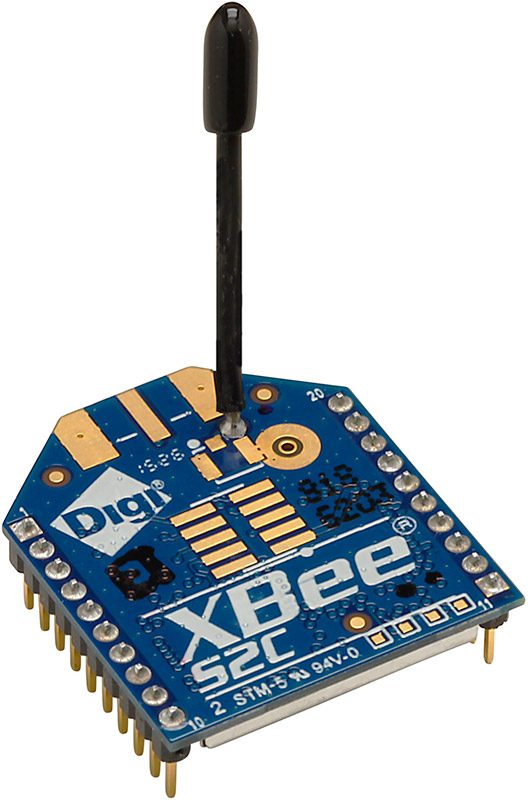

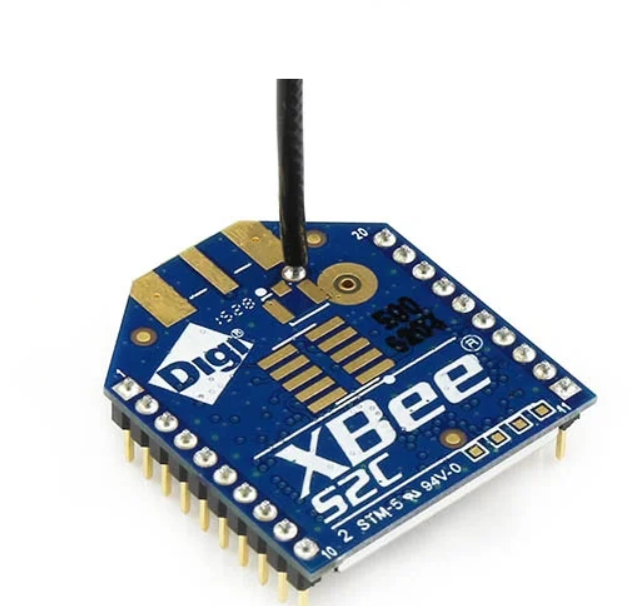

Zigbee XBee Module S2C 802.15.4 2mW with Wire Antenna XB24CZ7WIT-004
Specifications: 1. Model: XB24CZ7WIT-004 2. Frequency: 2.4GHz ISM Band 3. Output Power: +3 dBm (2mW) 4. Receiver Sensitivity: -102 dBm 5. Antenna: Wire Antenna 6. Range (LOS): Up to 120 meters (outdoor), ~30m (indoor) 7. Data Rate: 250 kbps (RF), 1 Mbps (UART) 8. Interface: UART (up to 1 Mbps), SPI 9. Supply Voltage: 2.1V to 3.6V 10. Current Consumption: • TX: ~33mA • RX: ~28mA • Sleep: ~1.5 µA 11. Form Factor: Through-hole, 20-pin module 12. Dimensions: 24.4mm × 27.0mm 13. Temperature Range: -40°C to +85°C 14. Weight: ~ 3.5 grams 15. Applications: Home automation, industrial control, wireless sensor networks, telemetry, energy management
Non-returnable
₹3,700.00 ₹4,000.00
Share :
Product Details
The XBee S2C (XB24CZ7WIT-004) is a compact and low-power wireless transceiver module that supports IEEE 802.15.4 for point-to-point and point-to-multipoint communication. Built using Silicon Labs' EFR32 SoC, it provides reliable wireless connectivity for embedded devices over short to medium ranges.
🔹 Features: • Based on Silicon Labs EFR32MG SoC with 32-bit ARM Cortex-M4 • Operates on 2.4GHz ISM band using 802.15.4 protocol • 2mW output power with wire whip antenna for moderate range • Supports UART and SPI interfaces • Compact form factor ideal for embedded applications • Up to 250 kbps RF data rate • Low power consumption, making it suitable for battery-powered devices • Compatible with DigiMesh and ZigBee firmware (optional upgrades)
