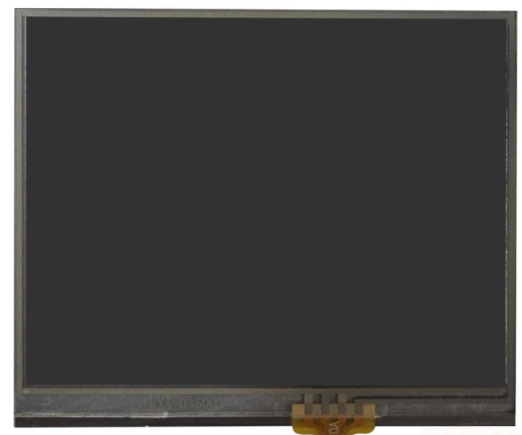

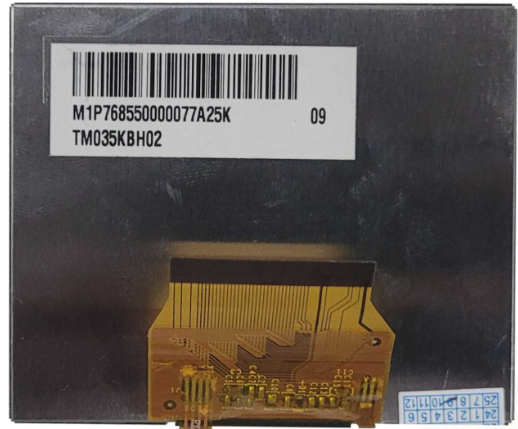

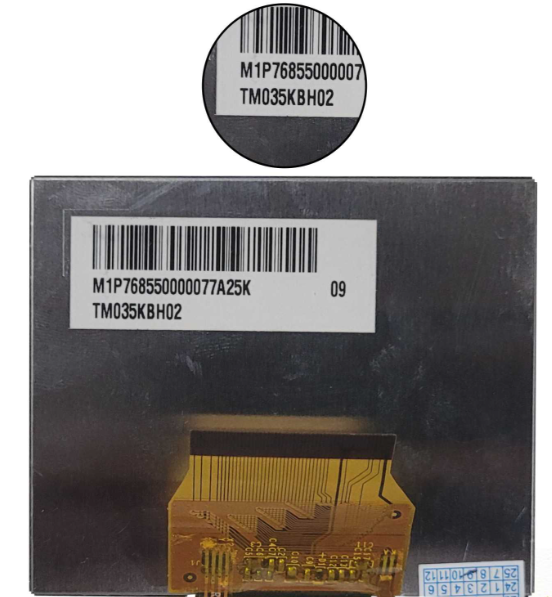

Tianma TM035KBH02 LCD display With Touch screen

The Tianma TM035KBH02 is a 3.5-inch TFT-LCD module that offers an ideal balance of compact design, color accuracy, and interface flexibility, making it highly suited for handheld devices, industrial control systems, and embedded applications. With its QVGA resolution (320×240) and 115 PPI pixel density, the display provides crisp and detailed visuals across a 70.08 mm × 52.56 mm active area.

This display supports 350 cd/m² brightness and a 500:1 contrast ratio, enabling good readability under various lighting conditions. The TN panel, operating in Normally White, Transmissive mode, ensures energy efficiency while delivering vivid output. The viewing angles of 70°/70°/60°/70° (L/R/U/D) enhance usability from multiple perspectives, which is particularly beneficial in dynamic user interfaces.

The display renders 16.7 million colors with 53% NTSC coverage, producing rich visuals with a decent color gamut. A 25 ms response time enables smooth visual transitions in interactive applications. Its anti-glare surface treatment combined with a 3H hard coating ensures resistance against scratches and reflections for durable performance.

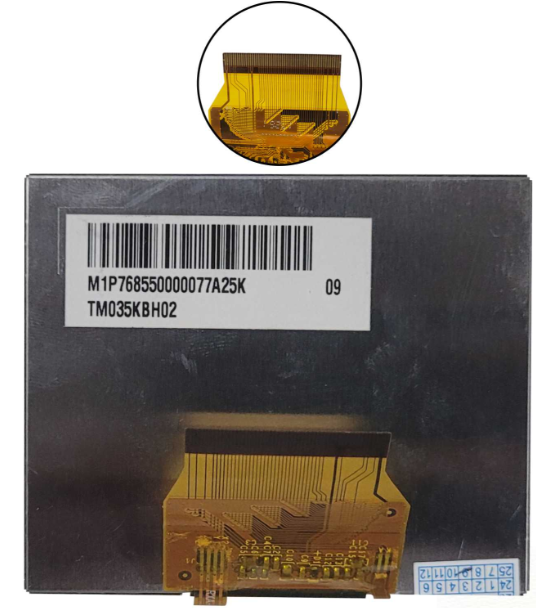

The module features a Digital RGB (8/24-bit) + SPI interface, and supports CCIR601/656 through a 54-pin FPC connector, allowing versatile connectivity. It operates at a refresh rate of 60Hz and is powered at 3.3V. The 6S1P WLED backlight system is rated for 20,000 hours, providing a long operational lifespan. It performs reliably in temperatures ranging from -20°C to 60°C (operation) and -30°C to 70°C (storage).
