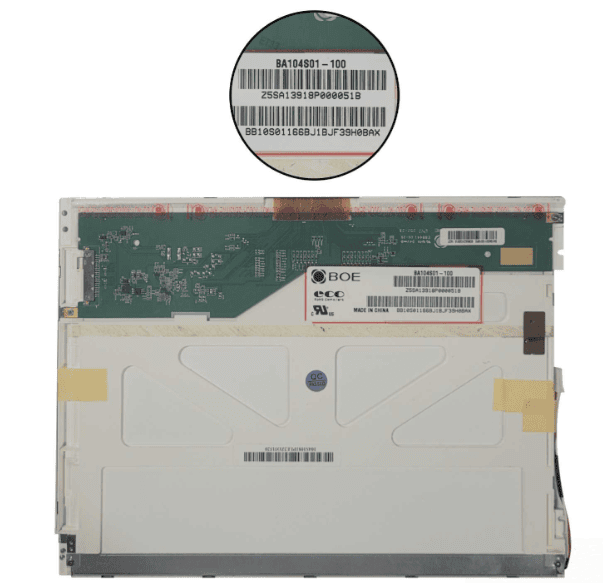

BOE BA104S01-100 LCD DISPLAY

Specification:

Display Type: a-Si TFT-LCD (Active Matrix)
Screen Size: 10.4 inches (diagonal)
Resolution: 800 × 600 (SVGA)
Aspect Ratio: 4:3
Color Depth: 262K (6-bit) / 16.7M (6-bit + FRC)
Brightness: ~450–500 cd/m² (typical)
Contrast Ratio: ~700:1
Viewing Angle: 80° (L/R/U/D) wide viewing
Surface Treatment: Anti-glare (AG), Hard coating
Backlight Type: White LED (edge-lit)
Backlight Life: Approx. 50,000 hours
Interface: LVDS (Single Channel, 6-bit data)
Voltage Supply: 3.3V (logic)
Operating Temperature: -20°C to +70°C
Storage Temperature: -30°C to +80°C

Non-returnable

₹12,840.00 ₹17,500.00

Product Details

The BOE BA104S01-100 is a 10.4-inch SVGA (800×600) TFT-LCD module designed for industrial control, medical diagnostics, and embedded display systems. Known for its robust construction and consistent performance, this panel delivers crisp image quality, reliable brightness, and wide viewing angles, making it ideal for applications in harsh or mission-critical environments.

It features an energy-efficient white LED backlight, ensuring long service life and low power consumption, while the LVDS interface supports stable, high-speed data transmission. The display’s 4:3 aspect ratio and anti-glare treatment make it optimal for both indoor and semi-outdoor use.
