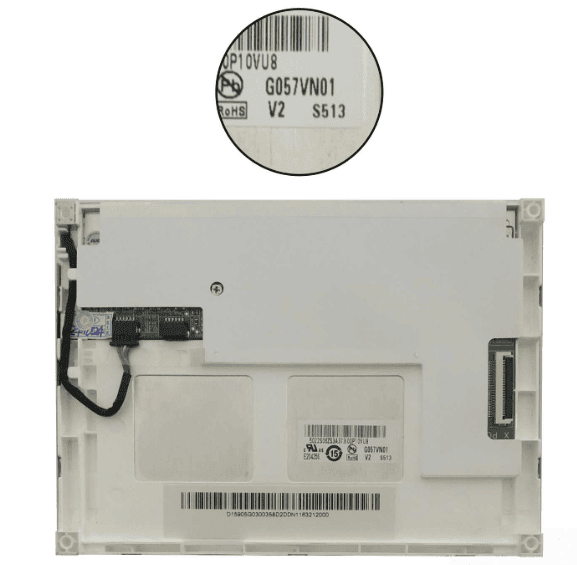

AUO G057VN01-V.2 LCD DISPLAY

Specification:

1. Display Size: 5.7 inches (14.5 cm) diagonal

2. Resolution: 640 × 480 pixels (VGA)

3. Aspect Ratio: 4:3

4. Display Type: a-Si TFT-LCD, transmissive

5. Color Depth: 262K colors (6-bit)

6. Pixel Pitch: ~0.18 × 0.18 mm

7. Brightness: Typically 800–1000 cd/m² (sunlight readable)

8. Contrast Ratio: ~500:1

9. Viewing Angle: ±70° horizontal / ±60° vertical (typical)

10. Response Time: ~25–30 ms

11. Backlight Type: White LED, edge-lit

12. Backlight Lifetime: ~50,000 hours

13. Interface: TTL or LVDS (model dependent)

14. Surface Treatment: Anti-glare with hard coating (3H)

15. Operating Temperature: -30°C to +85°C

16. Storage Temperature: -40°C to +90°C
