ARM-JTAG-20-10

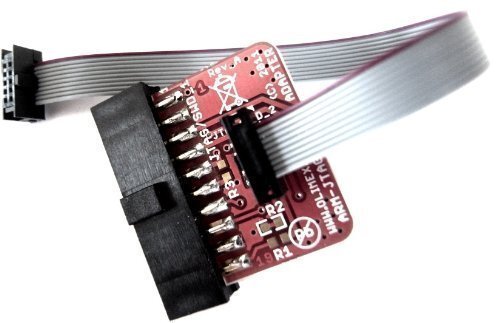

The ARM-JTAG-20-10 is a compact interface adapter that converts a standard 20-pin ARM JTAG header to a 10-pin ARM Cortex Debug Connector. It is commonly used in embedded development environments to connect full-size JTAG programmers or debuggers (like ARM-compatible tools) to ARM Cortex-M series microcontrollers that use the 10-pin standard interface.

Features:

• Converts 20-pin ARM JTAG header to 10-pin ARM Cortex header

• Compatible with ARM Cortex-M series microcontrollers

• Pin-to-pin accurate mapping based on ARM JTAG and SWD standards

• Compact and easy to use in prototyping setups

• No external power required (passive adapter)

• Useful for adapting legacy JTAG programmers to newer Cortex boards
