Feature | Details |
|---|
Model | DMG80480C040_03WN |
Display Type | TFT LCD Module |
Touchscreen | Optional Capacitive or Resistive (model-dependent) |
Resolution | 480 (W) × 800 (H) pixels |
Display Size | 4.0 inches (Diagonal) |
Aspect Ratio | 16:9 |
Color Depth | 65K / 262K colors |
Viewing Angle | ≥ 70° (L/R/U/D typical) |
Brightness | 300–500 cd/m² (typical, depending on version) |
Contrast Ratio | ~500:1 |
Touch Panel Interface | I2C (capacitive), Analog (resistive) |
Operating Voltage | 5.0V DC (typical) |
Current Consumption | ~200–300 mA (varies by brightness and backlight) |

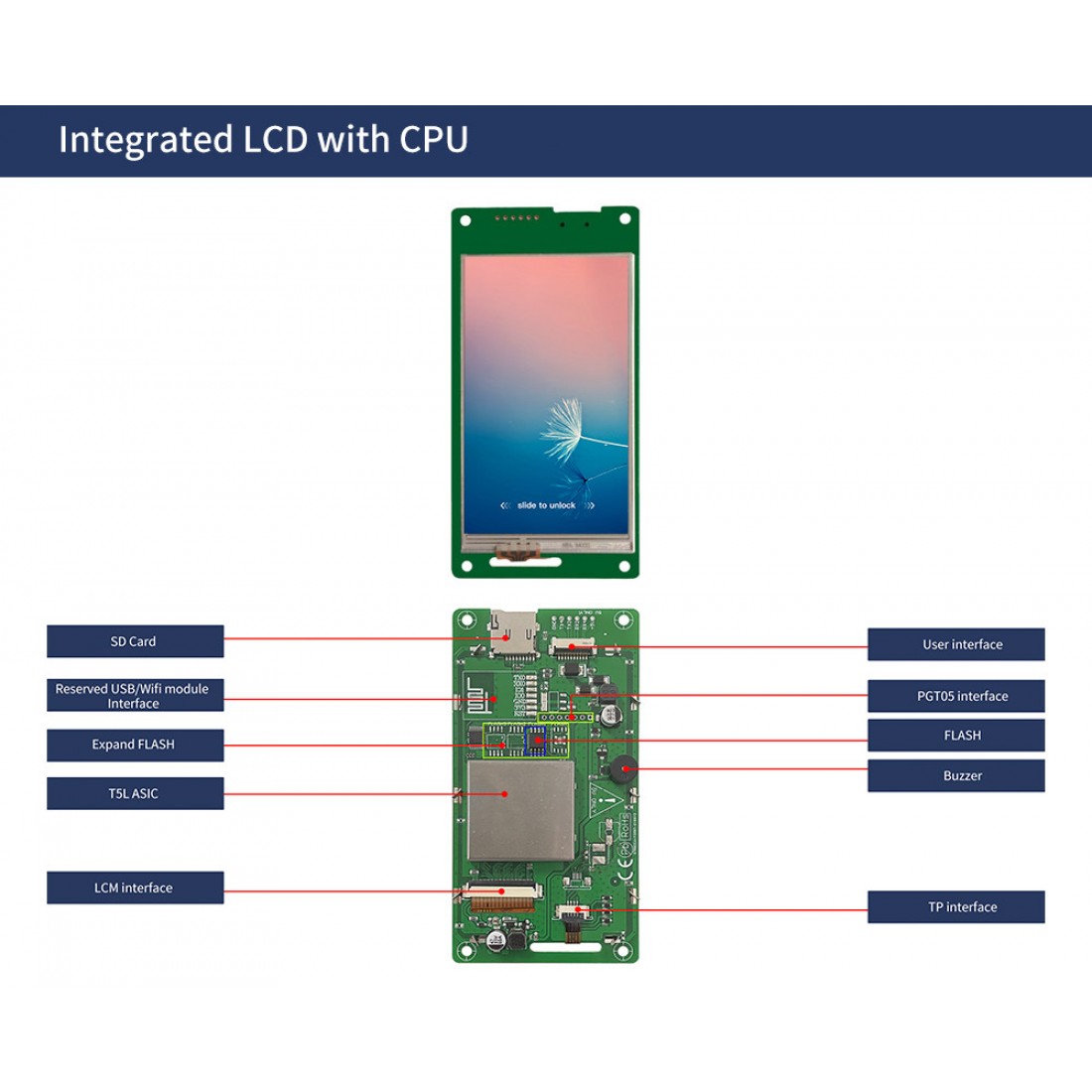

MCU | T5L ASIC (DWIN's in-house dual-core processor) |
Non-returnable
₹4,900.00 ₹5,120.00
