DEVELOPMENT BOARDORANGE PIORANGE PI BOARD ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC
ORANGE PI CM5 8GB RAM 32G EMMC

ORANGE PI CM5 8GB RAM 32G EMMC

Specifications

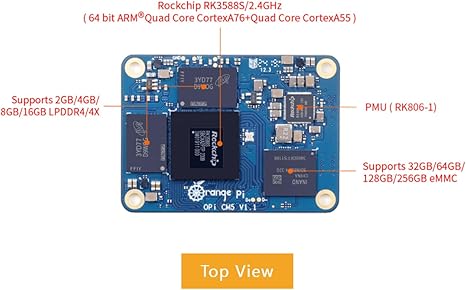

  • Processor: Rockchip RK3588S (4× Cortex-A76 up to 2.4GHz + 4× Cortex-A55 up to 1.8GHz)

  • GPU: ARM Mali-G610 MP4

  • AI Engine: 6 TOPS NPU (INT4/8/16 support)

  • RAM: 8GB LPDDR4x

  • Storage: 32GB eMMC; SDMMC expansion supported

  • Display Interfaces: HDMI 2.1, eDP 1.3, MIPI DSI

  • Camera Interfaces: MIPI CSI 4-lane and 2× 2-lane inputs

  • Connectivity: USB 3.0, USB 2.0, USB-C (DP Alt Mode), PCIe 2.0, RGMII Gigabit Ethernet

  • Power Input: 5V DC via PMIC, approx. 1.8A max

  • Dimensions: 55mm x 40mm

  • Weight: Approx. 12g

Non-returnable
₹11,000.00 ₹12,000.00
Product Details

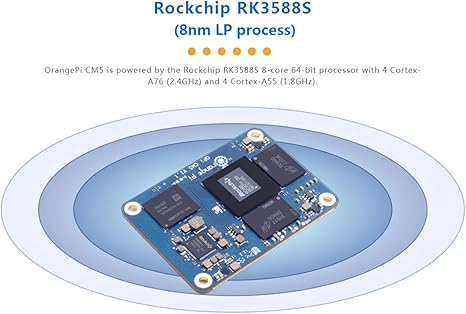

The Orange Pi CM5 is a high-performance compute module designed for advanced embedded systems and AI applications. Based on the Rockchip RK3588S SoC, it offers powerful CPU and GPU performance, a built-in AI accelerator, and rich I/O options via high-density board-to-board connectors. With 8GB LPDDR4x RAM and 32GB eMMC storage, it delivers exceptional processing capabilities in a compact form factor.


Key Features

  • Powered by Rockchip RK3588S octa-core processor (4× Cortex-A76 + 4× Cortex-A55)

  • 8GB LPDDR4x RAM for multitasking and large data handling

  • 32GB onboard eMMC flash storage

  • 6 TOPS AI accelerator for neural network processing

  • Mali-G610 MP4 GPU with advanced graphics support

  • Multiple high-speed interfaces: HDMI, eDP, MIPI, USB 3.0, PCIe, SATA

  • Supports Linux and Android operating systems

  • Compact 55mm x 40mm module form factor with 3× 100-pin connectors
